thin-csi StorageClass in vSphere is using RAID 1 instead of default StoragePolicy

XMLWordPrintable

    • None
    • Product / Portfolio Work
    • None
    • False
    • Hide

      None

      Show
      None
    • None
    • None
    • None
    • None
    • None
    • None
    • None
    • None
    • None

      Proposed title:

      thin-csi StorageClass in vSphere should use default StoragePolicy of datastore



      Description:

      In vsphere, thin-csi is having StoragePolicy with "openshift-storage-policy-<cluster-name>". when we use the same for ODF deployment, its creating disks with RAID 1.
      ODF has its own way to replicate objects. From storage point of view, we are overusing it.

      This request is to use the default StoragePolicy  or provide a way to change the StoragePolicy for thin-csi during deployment.

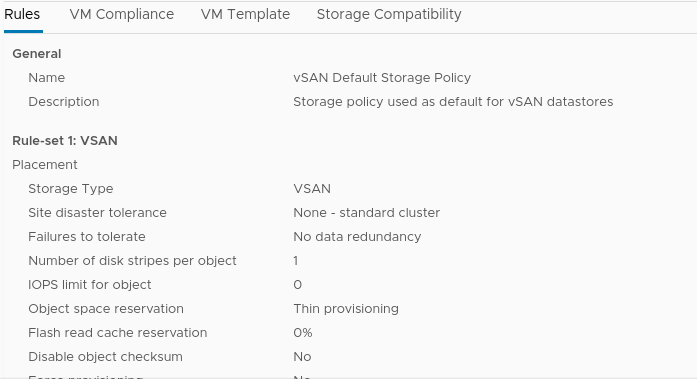

      In our case, our default StoragePolicy for vSAN is "vSAN Default Storage Policy" which inturn configured to RAID 0

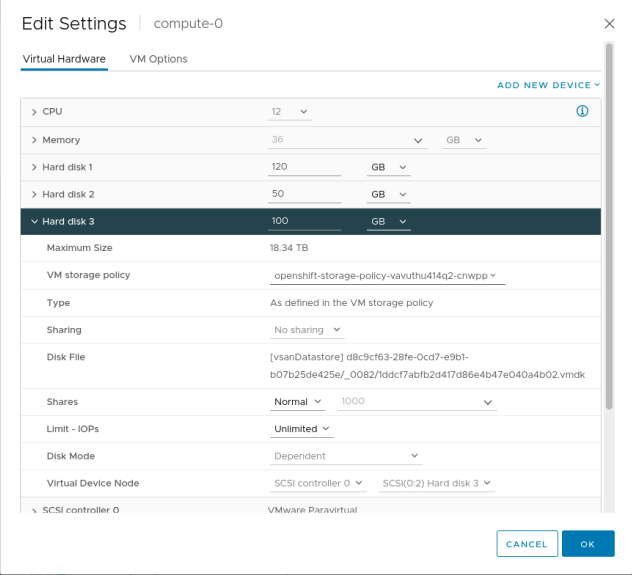

      ODF creates the disks by using thin-csi which has StoragePolicy with "openshift-storage-policy-<cluster-name>"

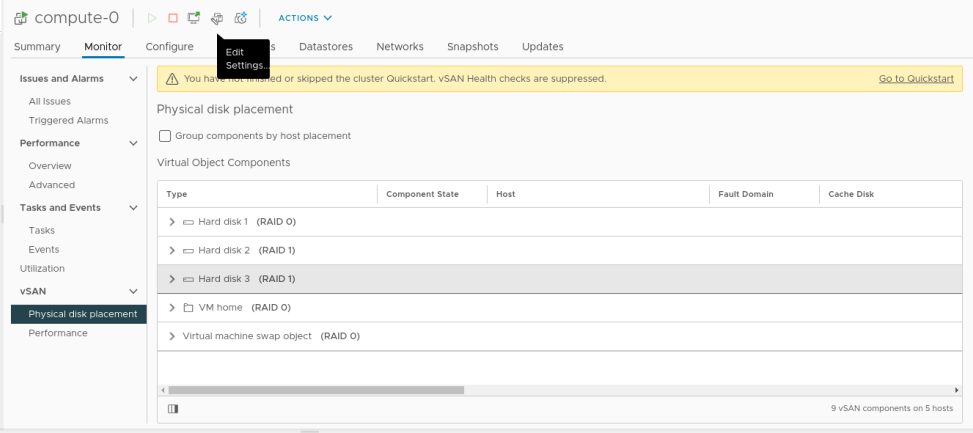

      Disks using RAID 1



        1. Screenshot from 2023-07-18 22-13-45.png
          42 kB
          Vijay Bhaskar Reddy Avuthu
        2. Screenshot from 2023-07-18 22-04-20.png
          62 kB
          Vijay Bhaskar Reddy Avuthu
        3. Screenshot from 2023-07-18 22-04-30.png
          68 kB
          Vijay Bhaskar Reddy Avuthu

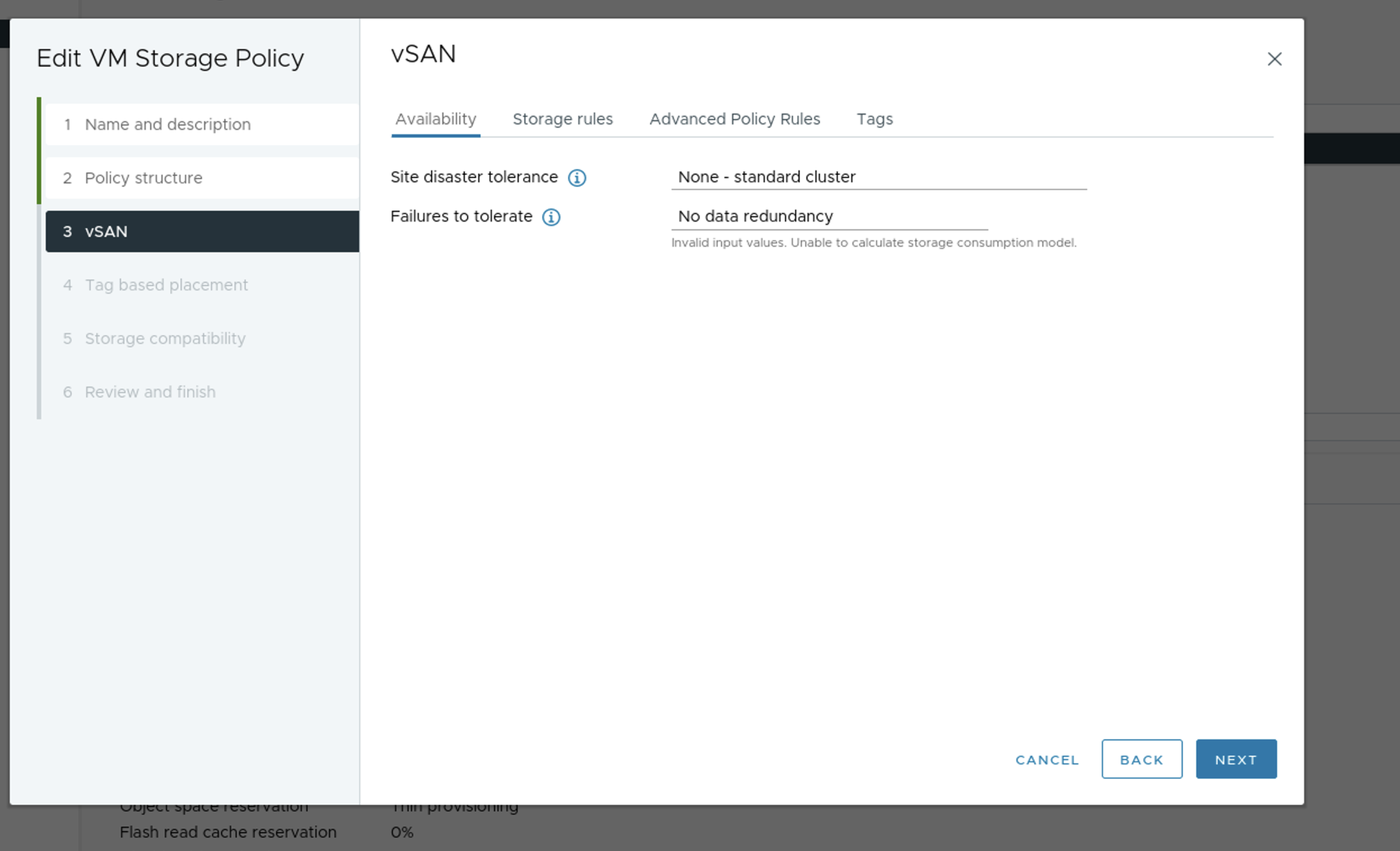

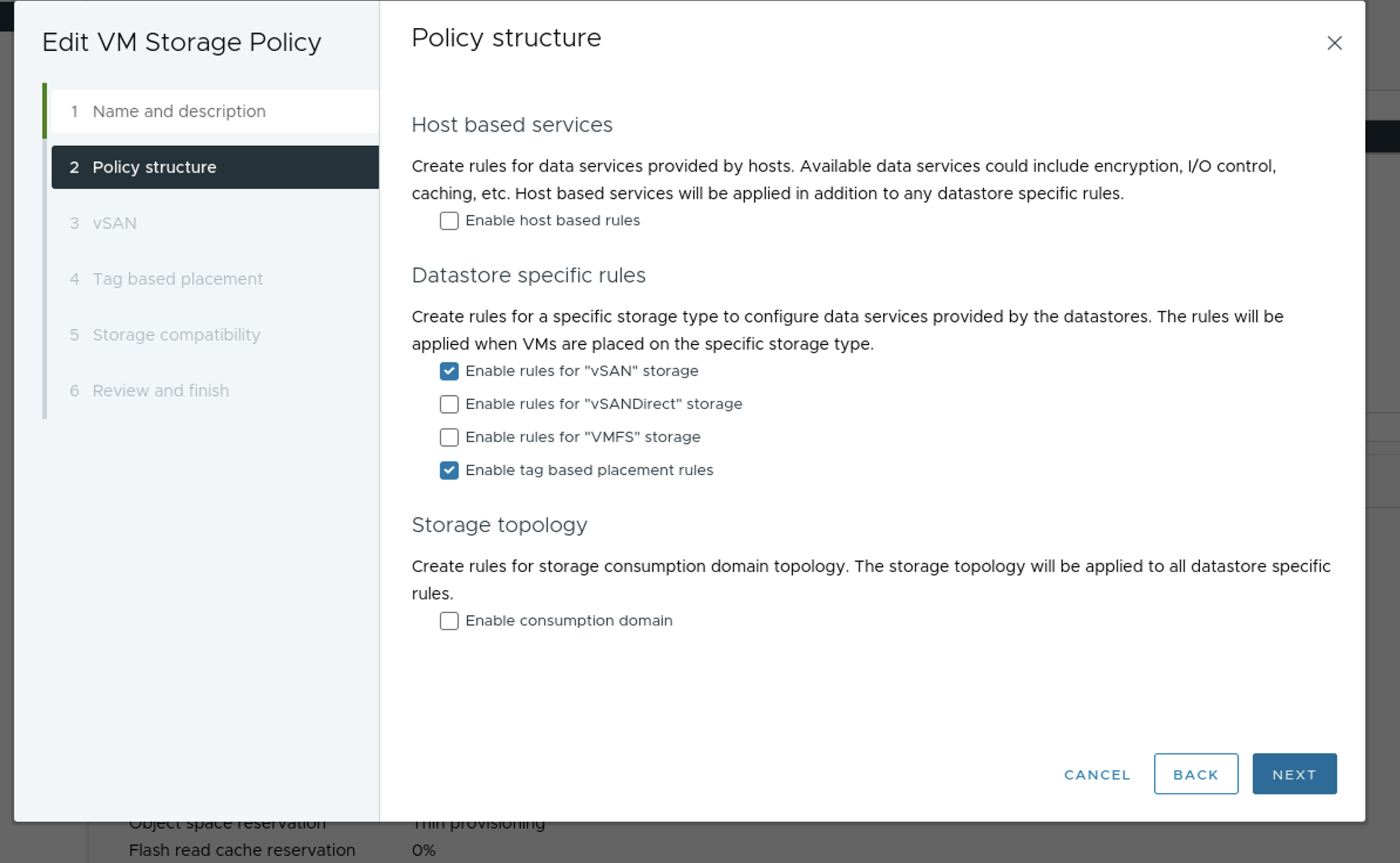

        4. Screenshot 2023-07-19 at 4.18.59 PM.png
          776 kB
          Hemant Kumar
        5. Screenshot 2023-07-19 at 4.19.06 PM.png
          434 kB
          Hemant Kumar
