[ACM] - Alerts - cluster-name should be truncated after a certain length

XMLWordPrintable

    • Icon: Bug Bug
    • Resolution: Unresolved
    • Icon: Undefined Undefined
    • openshift-4.19
    • OpenShift 4.15, OpenShift 4.16, OpenShift 4.17, OpenShift 4.18, openshift-4.19
    • None
    • None
    • Quality / Stability / Reliability
    • 1
    • False
    • Hide

      None

      Show
      None
    • False
    • NEW
    • NEW
    • Sprint 270

      Problem:

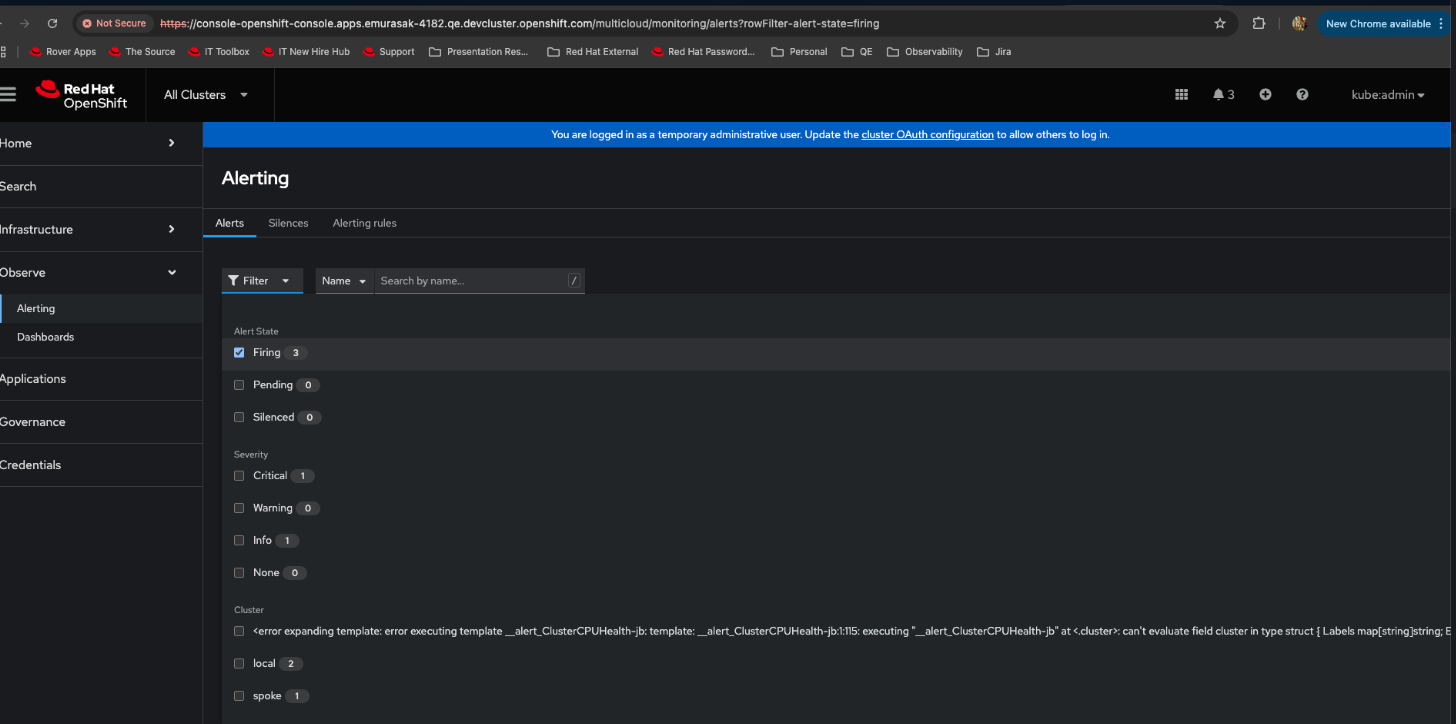

      In case we have an issue in the cluster-name, as the example in the YAML file, it is showing a huge cluster name, not really parsed / truncated.





      oc apply -f - <<EOF
      apiVersion: v1
      data:
        custom_rules.yaml: |
          groups:
            - name: alertrule-testing
              rules:
              - alert: Watchdog
                annotations:
                  summary: An alert that should always be firing to certify that Alertmanager is working properly.
                  description: This is an alert meant to ensure that the entire alerting pipeline is functional.
                expr: vector(1)
                labels:
                  instance: "local"
                  cluster: "local"
                  clusterID: "111111111"
                  severity: info
              - alert: Watchdog-spoke
                annotations:
                  summary: An alert that should always be firing to certify that Alertmanager is working properly.
                  description: This is an alert meant to ensure that the entire alerting pipeline is functional.
                expr: vector(1)
                labels:
                  instance: "spoke"
                  cluster: "spoke"
                  clusterID: "22222222"
                  severity: warn

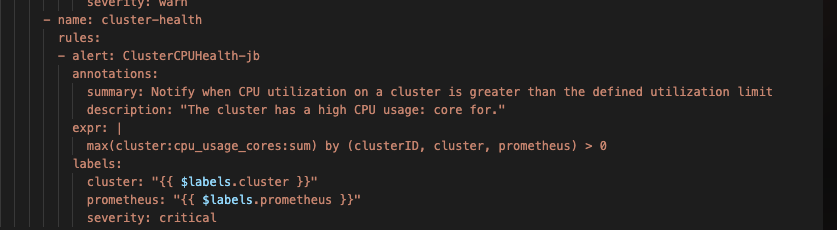

            - name: cluster-health
              rules:
              - alert: ClusterCPUHealth-jb
                annotations:
                  summary: Notify when CPU utilization on a cluster is greater than the defined utilization limit
                  description: "The cluster has a high CPU usage: core for."
                expr: |
                  max(cluster:cpu_usage_cores:sum) by (clusterID, cluster, prometheus) > 0
                labels:
                  cluster: "{{ $labels.cluster }}"
                  prometheus: "{{ $labels.prometheus }}"
                  severity: critical
      kind: ConfigMap
      metadata:
        annotations:
          kubectl.kubernetes.io/last-applied-configuration: |
            {"apiVersion":"v1","data":{"custom_rules.yaml":"groups:\n  - name: alertrule-testing\n    rules:\n    - alert: Watchdog\n      annotations:\n        summary: An alert that should always be firing to certify that Alertmanager is working properly.\n        description: This is an alert meant to ensure that the entire alerting pipeline is functional.\n      expr: vector(1)\n      labels:\n        instance: \"local\"\n        cluster: \"local\"\n        clusterID: \"111111111\"\n        severity: info\n    - alert: Watchdog-spoke\n      annotations:\n        summary: An alert that should always be firing to certify that Alertmanager is working properly.\n        description: This is an alert meant to ensure that the entire alerting pipeline is functional.\n      expr: vector(1)\n      labels:\n        instance: \"spoke\"\n        cluster: \"spoke\"\n        clusterID: \"22222222\"\n        severity: warn\n  - name: cluster-health\n    rules:\n    - alert: ClusterCPUHealth-jb\n      annotations:\n        summary: Notify when CPU utilization on a cluster is greater than the defined utilization limit\n        description: \"The cluster has a high CPU usage: {{  }} core for {{ .cluster }} {{ .clusterID }}.\"\n      expr: |\n        max(cluster:cpu_usage_cores:sum) by (clusterID, cluster, prometheus) \u003e 0\n      labels:\n        cluster: \"{{ .cluster }}\"\n        prometheus: \"{{ .prometheus }}\"\n        severity: critical\n"},"kind":"ConfigMap","metadata":{"annotations":{},"name":"thanos-ruler-custom-rules","namespace":"open-cluster-management-observability"}}
        creationTimestamp: "2024-11-01T06:16:10Z"
        labels:
          cluster.open-cluster-management.io/backup: ""
        name: thanos-ruler-custom-rules
        namespace: open-cluster-management-observability
        resourceVersion: "192432"
        uid: 969bf381-0963-45fb-b1cb-11270c982ea2
      EOF





      Solution:

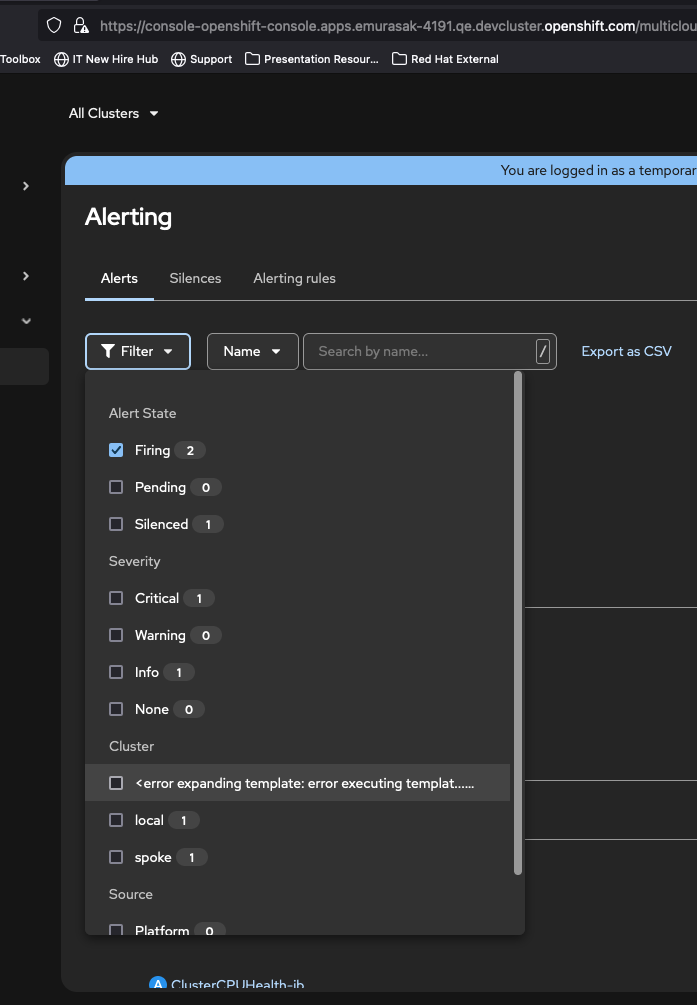

      Per rh-ee-pyurkoviWe could file a bug that we should truncate the cluster-name after a certain length, but the cluster label is set to that value. So it is accurate for that to appear there.

              rh-ee-pyurkovi Peter Yurkovich
              rh-ee-emurasak Evelyn Murasaki
