Remove crypto-policies and FIPS automation related patches

XMLWordPrintable

    • Icon: Task Task
    • Resolution: Unresolved
    • Icon: Major Major
    • None
    • None
    • None
    • None
    • False
    • Hide

      None

      Show
      None
    • False

      This task is to remove a group of downstream patches, identified as the patches that make OpenJDK honor the RHEL crypto-policies in place, including the FIPS crypto-policy, which is a special case requiring a special automation on the Java Security Providers configuration.

      Alternatives have been explored in OPENJDK-1686, with Alternative #2 already implemented and Alternative #1 proposed upstream. In parallel, a third alternative has also been proposed upstream, and is liked here for reference.

      Every patch is listed as a sub-task, to be closed once we are able to remove this patch in a future OpenJDK 22 build, and in a OpenJDK 21 build assuming the work referred in this task is upstreamed. You can refer the full fips-21u-75ffdc48eda.patch list of included commits, which corresponds to java-21-openjdk-21.0.0.0.35-1.el8.






      Following is a design for the Red Hat build of OpenJDK 25, to implement the crypto-policies and FIPS setup, leveraging the upstream JDK-8319332: Security properties files inclusion enhancement.

      System-wide crypto-policies and FIPS setup of the Red Hat build of OpenJDK 25 (OPENJDK-1686, alternative #1)

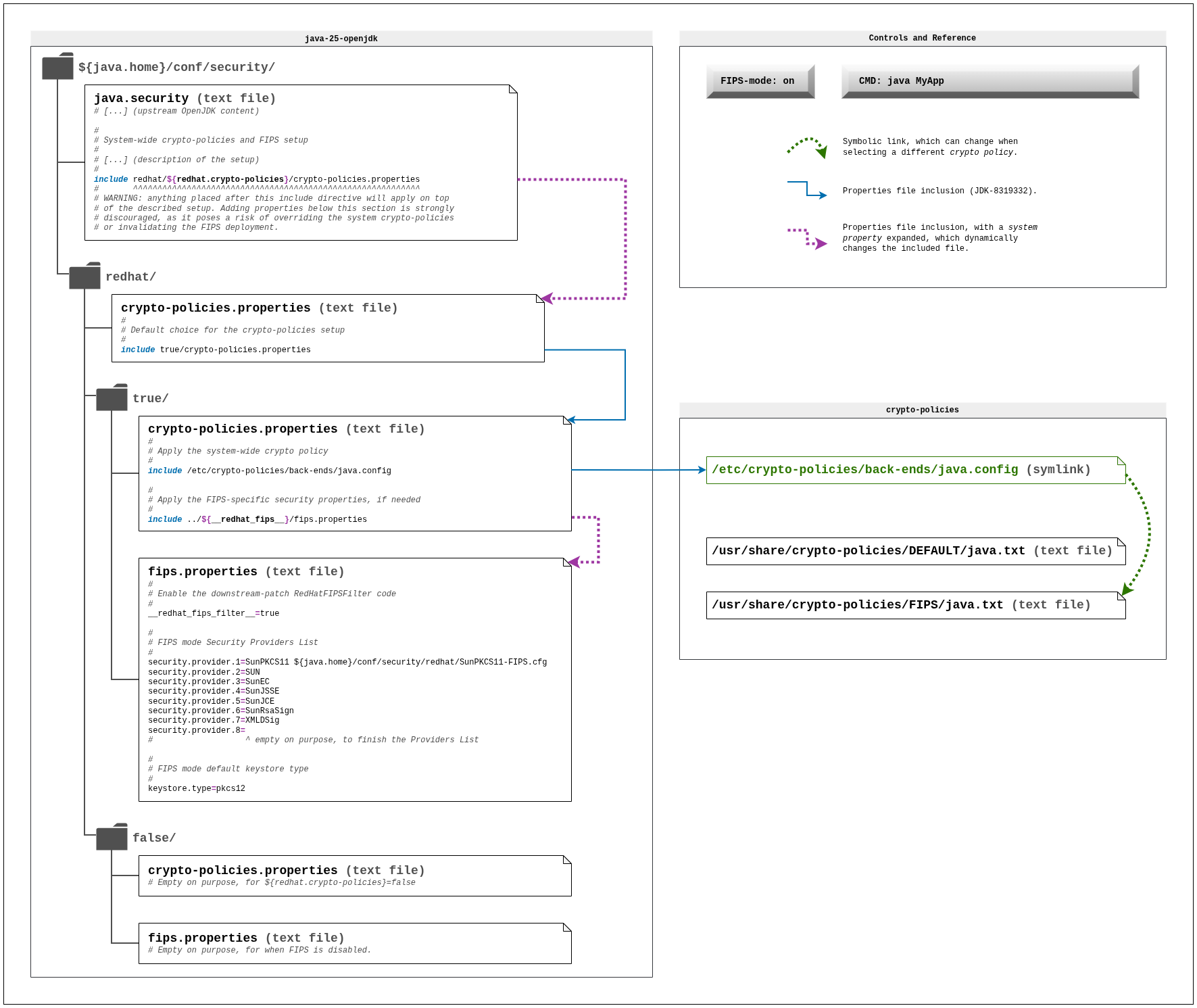

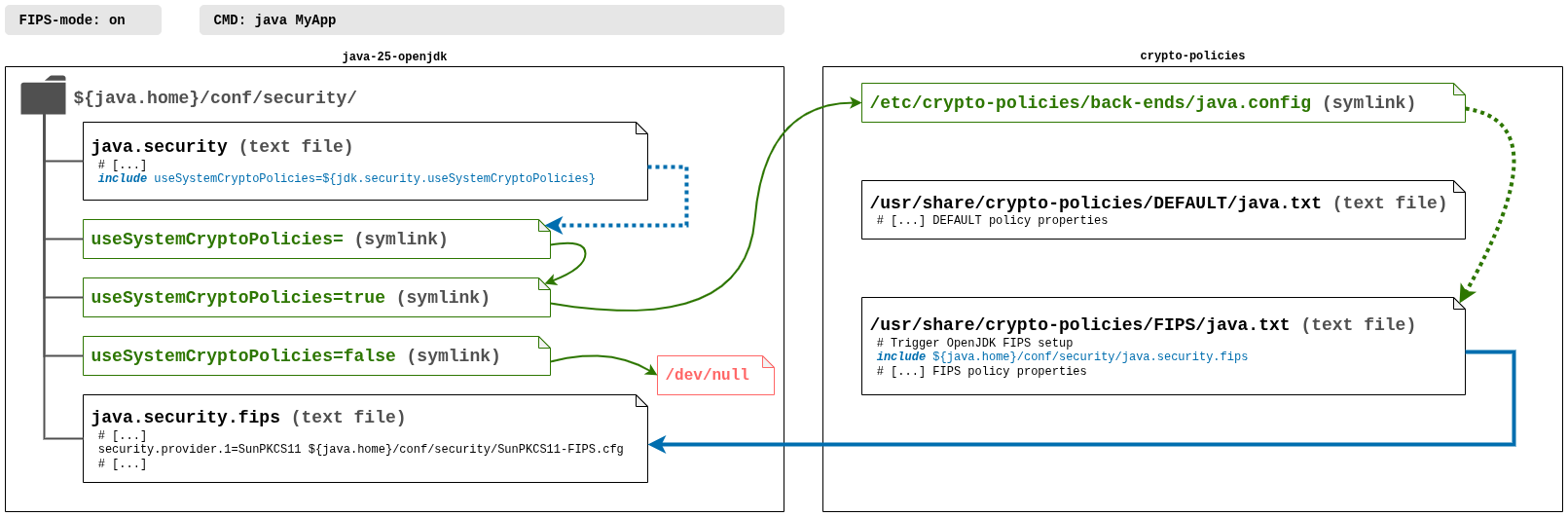

      Red Hat build of OpenJDK 25 will include the following configuration changes, depicted in the following interactive diagram (use the two control buttons to interact):

      To keep the diagram readable and reduce its size, I omitted a big comment in java.security where the setup is fully described. Here is the complete excerpt that the Red Hat Build of OpenJDK will append to ${java.home}/conf/security/java.security:

      #
      # System-wide crypto-policies and FIPS setup
      #
      # The following crypto-policies setup automatically detects when the system
      # is in FIPS mode and configures OpenJDK accordingly. If OpenJDK needs to
      # ignore the system and disable its FIPS setup, just disable the usage of
      # the system crypto-policies, by any of the methods described below.
      #
      # The redhat.crypto-policies system property is a boolean switch that
      # controls the usage on a per-run basis. For example, pass
      # -Dredhat.crypto-policies=false to disable the system crypto-policies.
      #
      # This setup consists of the following files in $JAVA_HOME/conf/security:
      #
      #   'redhat/false/crypto-policies.properties' (policies usage disabled file)
      #      Empty file, applied when the boolean switch is passed as false.
      #
      #   'redhat/true/crypto-policies.properties' (policies usage enabled file)
      #      Performs the crypto-policies and FIPS setup, applied when the boolean
      #      switch is passed as true.
      #
      #   'redhat/crypto-policies.properties' (policies usage default file)
      #      Determines the default choice by including one of the previous files,
      #      applied when the boolean switch is not passed.
      #      The system crypto-policies usage is enabled by default:
      #        include true/crypto-policies.properties
      #
      # To enable or disable the usage of the crypto-policies on a per-deployment
      # basis, edit the policies usage default file, changing the included file.
      # For example, execute the following command to persistently disable the
      # crypto-policies:
      #   sed -i s/true/false/ $JAVA_HOME/conf/security/redhat/crypto-policies.properties
      # Applications can still override this on a per-run basis, for example by
      # passing -Dredhat.crypto-policies=true.
      #
      # To disable the redhat.crypto-policies boolean switch, modify the following
      # include directive as follows. Replace ${redhat.crypto-policies} by true to
      # force-apply the system crypto-policies:
      #   include redhat/true/crypto-policies.properties
      # Remove or comment out the include directive to force-disable the setup:
      #   #include redhat/${redhat.crypto-policies}/crypto-policies.properties
      #
      include redhat/${redhat.crypto-policies}/crypto-policies.properties
      #       ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
      # WARNING: anything placed after this include directive will apply on top
      # of the described setup. Adding properties below this section is strongly
      # discouraged, as it poses a risk of overriding the system crypto-policies
      # or invalidating the FIPS deployment.


      And here is the ${java.home}/conf/security/redhat/SunPKCS11-FIPS.cfg file content:

      name = FIPS
      library = ${java.home}/lib/libnssadapter.so
      slot = 3
      nssUseSecmod = false
      attributes(*,CKO_SECRET_KEY,*)={ CKA_SIGN=true CKA_ENCRYPT=true }


      NSS Native FIPS Key Import Export Adapter (OPENJDK-2135)

      ${java.home}/lib/libnssadapter.so is built from the OPENJDK-2135 development, and will be shipped along other Red Hat build of OpenJDK 25 libraries.

      Remaining Red Hat build of OpenJDK 25 FIPS patch

      With the JDK-8315487: Security Providers Filter work still pending, we need to keep a reduced version of the downstream FIPS patch.

      Also, we are introducing a temporary _redhat_fips_ system property as a downstream patch. After some emails exchange with Sean Mullan (Oracle engineer and Lead of the OpenJDK Security Group), we realized an upstream proposal for a system property that reflects the /proc/sys/crypto/fips_enabled status is very unlikely to be accepted. We'll explore other alternatives, or come back to the RHEL-107438 approach.

      A pull request with this patch in under review: rh-openjdk/jdk#40 Implement OpenJDK 25 FIPS patch (for OPENJDK-4184).
