Bug
-
Resolution: Done-Errata
-
Blocker
-
MTA 7.0.0, MTA 7.1.0, MTA 7.0.2, MTA 7.0.1, MTA 7.0.3, MTA 7.0.4, MTA 7.1.1, MTA 7.1.2
Description of problem:
By convention, SVN repositories have three subdirectories under their root path: trunk, branches (could be branch in some cases) and tags (could be tag as well). Right now, when retrieving source code, addons are automatically adding /trunk or /branches/<target_branch> on the repo URL for Checkout depending on whether the Branches field of the application has a value or not, which makes it impossible to checkout anything under tags.
A solution for this could be to repurpose the Root Path field from the application entity for SVN repos, in a way that it is used to specify the path inside of the repo that needs to be checked out and overriding the concatenation of trunk or any branch that might be specified.
For example, as it works right now, if repository URL was https://svn.corp/my-repo and root path was /Application_1, the addons would checkout https://svn.corp/my-repo/trunk and then look for the /Application_1 subdirectory to execute their task against it.

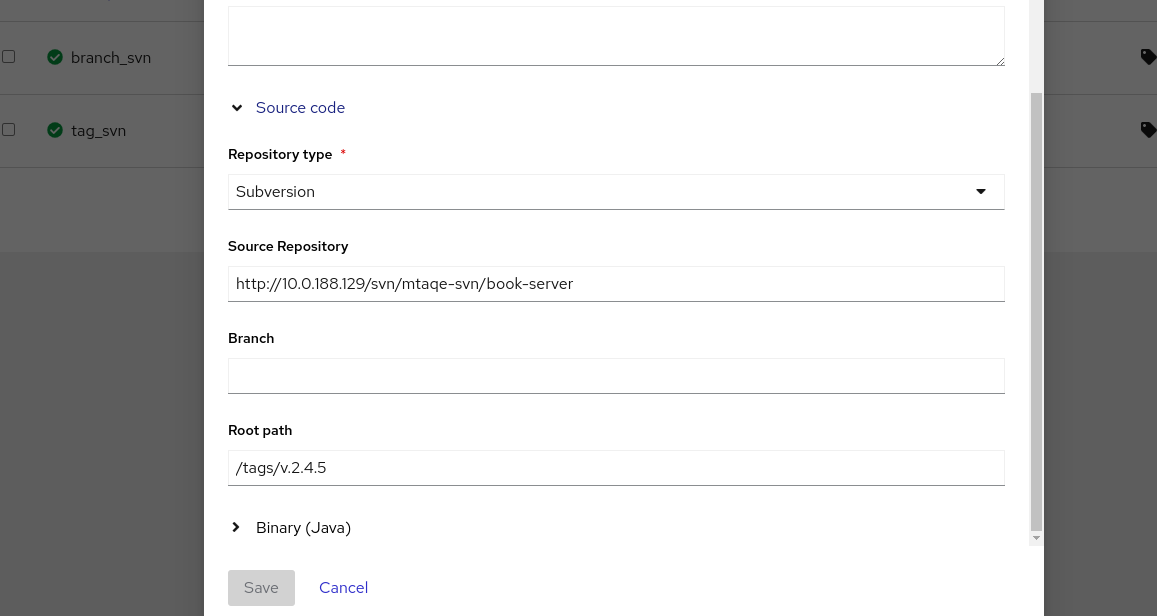

The proposal would be that, if repository URL was https://svn.corp/my-repo and root path was /tags/v.2.4.5/Application_1, the addons would checkout https://svn.corp/my-repo/tags/v.2.4.5/Application_1 and the task would be executed on the root path of the directory that was checked out. This would enable the user to access tags or any non-conventional subdirectory under the root repository (such as branch or tag instead of branches and tags), and should be possible because SVN allows users to checkout any directory and not only root repositories like Git.
Of course, this would require a documentation update to reflect the specifics of the SVN use case.
Version-Release number of selected component (if applicable):
MTA 7.1.1
How reproducible:
Always
- relates to
-
MTA-4264 [DOC] Tags are not accessible in SVN repositories
-
- Release Pending
-
- links to
-
RHBA-2024:139533
Migration Toolkit for Applications bug fix and enhancement update
[MTA-4236] [Hub] Tags are not accessible in SVN repositories
Karishma Punwatkar
added a comment - Test Scenarios Analysis succeeded:
- url=http://10.0.188.129/svn/mtaqe-svn/book-server/tags/v2.4.5
url=http://10.0.188.129/svn/mtaqe-svn/book-server/trunk
url=http://10.0.188.129/svn/mtaqe-svn/book-server/branches/bookserver-app
branch =
root path= src/main/java - url=http://10.0.188.129/svn/mtaqe-svn/book-server
branch = tags/v.2.4.5
also for branch = branches/bookserver-app
root path= src/main/java
- '[CMD] Running: /usr/bin/svn --non-interactive --trust-server-cert checkout http://10.0.188.129/svn/mtaqe-svn/book-server/tags/v.2.4.5/src/main/java /shared/source/book-server/src/main/java' - '[CMD] /usr/bin/svn succeeded.'
Karishma Punwatkar
added a comment - Test Scenarios Analysis succeeded:
url = http://10.0.188.129/svn/mtaqe-svn/book-server/tags/v2.4.5
url = http://10.0.188.129/svn/mtaqe-svn/book-server/trunk
url = http://10.0.188.129/svn/mtaqe-svn/book-server/branches/bookserver-app
branch =
root path= src/main/java
url = http://10.0.188.129/svn/mtaqe-svn/book-server
branch = tags/v.2.4.5
also for branch = branches/bookserver-app
root path= src/main/java
- '[CMD] Running: /usr/bin/svn --non-interactive --trust-server-cert checkout http: //10.0.188.129/svn/mtaqe-svn/book-server/tags/v.2.4.5/src/main/java /shared/source/book-server/src/main/java' - '[CMD] /usr/bin/svn succeeded.'
Karishma Punwatkar
added a comment - 1. This test scenario Succeeded, I was missing . in tags/v.2.4.5
url=http://10.0.188.129/svn/mtaqe-svn/book-server
branch=tags/v.2.4.5
path=
Fetching application.
- '[CMD] Running: /usr/bin/ssh-agent -a /tmp/agent.1'
- '[CMD] /usr/bin/ssh-agent succeeded.'
- '[SSH] Agent started.'
- '[SVN] Cloning: http://10.0.188.129/svn/mtaqe-svn/book-server/tags/v.2.4.5'
- '[SVN] Using credentials (id=1) svn.'
- '[FILE] Created /addon/.subversion/servers.'
- '[FILE] Updated /addon/.subversion/auth/svn.simple/4d8acb11225214446c33910e2e7f5cc0.'
- '[CMD] Running: /usr/bin/svn --non-interactive --trust-server-cert checkout http://10.0.188.129/svn/mtaqe-svn/book-server/tags/v.2.4.5 /shared/source/book-server'
- '[CMD] /usr/bin/svn succeeded.'
- '[RULESET] fetching: id=1 (.discovery)'
- '[RULESET] fetching: id=24 (cloud-readiness)'
- '[RULESET] fetching (dep): id=20 (.technology-usage)'
- '[CMD] Running: /usr/bin/windup-shim convert --outputdir /addon/rules/rulesets/1/rules /addon/rules/rulesets/1/rules'
- '[CMD] /usr/bin/windup-shim succeeded.'
- '[CMD] Running: /usr/bin/windup-shim convert --outputdir /addon/rules/rulesets/24/rules /addon/rules/rulesets/24/rules'
- '[CMD] /usr/bin/windup-shim succeeded.'
- '[CMD] Running: /usr/bin/windup-shim convert --outputdir /addon/rules/rulesets/20/rules /addon/rules/rulesets/20/rules'
- '[CMD] /usr/bin/windup-shim succeeded.'
- '[CMD] Running: /usr/local/bin/konveyor-analyzer --provider-settings /addon/opt/settings.yaml --output-file /addon/issues.yaml --dep-output-file /addon/deps.yaml --no-dependency-rules --rules /addon/rules/rulesets/1/rules --rules /addon/rules/rulesets/24/rules --rules /addon/rules/rulesets/20/rules --label-selector konveyor.io/target=cloud-readiness'
- '[CMD] /usr/local/bin/konveyor-analyzer succeeded.'
- '[TAG] Tagging Application 55.'
- '[CMD] Running: /usr/bin/svn --non-interactive --trust-server-cert info -r HEAD'
- '[CMD] /usr/bin/svn succeeded.'
- 'Analysis 55 reported. duration: 61.814096ms'
- Facts updated.
- Done.
Karishma Punwatkar
added a comment - 1. This test scenario Succeeded, I was missing . in tags/v.2.4.5
url = http://10.0.188.129/svn/mtaqe-svn/book-server
branch =tags/v.2.4.5
path =
Fetching application.
' [CMD] Running: /usr/bin/ssh-agent -a /tmp/agent.1'
' [CMD] /usr/bin/ssh-agent succeeded.'
' [SSH] Agent started.'
' [SVN] Cloning: http://10.0.188.129/svn/mtaqe-svn/book-server/tags/v.2.4.5 '
' [SVN] Using credentials (id=1) svn.'
' [FILE] Created /addon/.subversion/servers.'
' [FILE] Updated /addon/.subversion/auth/svn.simple/4d8acb11225214446c33910e2e7f5cc0.'
' [CMD] Running: /usr/bin/svn --non-interactive --trust-server-cert checkout http://10.0.188.129/svn/mtaqe-svn/book-server/tags/v.2.4.5 /shared/source/book-server'
' [CMD] /usr/bin/svn succeeded.'
' [RULESET] fetching: id=1 (.discovery)'
' [RULESET] fetching: id=24 (cloud-readiness)'
' [RULESET] fetching (dep): id=20 (.technology-usage)'
' [CMD] Running: /usr/bin/windup-shim convert --outputdir /addon/rules/rulesets/1/rules /addon/rules/rulesets/1/rules'
' [CMD] /usr/bin/windup-shim succeeded.'
' [CMD] Running: /usr/bin/windup-shim convert --outputdir /addon/rules/rulesets/24/rules /addon/rules/rulesets/24/rules'
' [CMD] /usr/bin/windup-shim succeeded.'
' [CMD] Running: /usr/bin/windup-shim convert --outputdir /addon/rules/rulesets/20/rules /addon/rules/rulesets/20/rules'
' [CMD] /usr/bin/windup-shim succeeded.'
' [CMD] Running: /usr/local/bin/konveyor-analyzer --provider-settings /addon/opt/settings.yaml --output-file /addon/issues.yaml --dep-output-file /addon/deps.yaml --no-dependency-rules --rules /addon/rules/rulesets/1/rules --rules /addon/rules/rulesets/24/rules --rules /addon/rules/rulesets/20/rules --label-selector konveyor.io/target=cloud-readiness'
' [CMD] /usr/local/bin/konveyor-analyzer succeeded.'
' [TAG] Tagging Application 55.'
' [CMD] Running: /usr/bin/svn --non-interactive --trust-server-cert info -r HEAD'
' [CMD] /usr/bin/svn succeeded.'
'Analysis 55 reported. duration: 61.814096ms'
Facts updated.
Done.
Looks like the actual tag is v.2.4.5 not v2.4.5.
Worked for me with:
branch=v.2.4.5
Jeff Ortel
added a comment - - edited Looks like the actual tag is v . 2.4.5 not v2.4.5.
Worked for me with:
branch=v.2.4.5 Karishma Punwatkar
added a comment - Thanks jortel for the steps,
1. This test scenario is failing
url=http://10.0.188.129/svn/mtaqe-svn/book-server
branch=tags/v2.4.5
path=
- 'OptDir: /addon/opt'
- 'SharedDir: /shared'
- 'CacheDir: /cache'
- 'SourceDir: /shared/source'
- 'RuleDir: /addon/rules'
- 'BinDir: /shared/bin'
- 'M2Dir: /cache/m2'
- Fetching application.
- '[CMD] Running: /usr/bin/ssh-agent -a /tmp/agent.1'
- '[CMD] /usr/bin/ssh-agent succeeded.'
- '[SSH] Agent started.'
- '[SVN] Cloning: http://10.0.188.129/svn/mtaqe-svn/book-server/tags/v2.4.5'
- '[SVN] Using credentials (id=1) svn.'
- '[FILE] Created /addon/.subversion/servers.'
- '[CMD] /usr/bin/svn failed: exit status 1'
2. This test scenario succeeded url=http://10.0.188.129/svn/mtaqe-svn/book-server/tags/v2.4.5
branch=
path=
Karishma Punwatkar
added a comment - Thanks jortel for the steps,
1. This test scenario is failing
url = http://10.0.188.129/svn/mtaqe-svn/book-server
branch =tags/v2.4.5
path =
'OptDir: /addon/opt'
'SharedDir: /shared'
'CacheDir: /cache'
'SourceDir: /shared/source'
'RuleDir: /addon/rules'
'BinDir: /shared/bin'
'M2Dir: /cache/m2'
Fetching application.
' [CMD] Running: /usr/bin/ssh-agent -a /tmp/agent.1'
' [CMD] /usr/bin/ssh-agent succeeded.'
' [SSH] Agent started.'
' [SVN] Cloning: http://10.0.188.129/svn/mtaqe-svn/book-server/tags/v2.4.5 '
' [SVN] Using credentials (id=1) svn.'
' [FILE] Created /addon/.subversion/servers.'
' [CMD] /usr/bin/svn failed: exit status 1'
2. This test scenario succeeded url = http://10.0.188.129/svn/mtaqe-svn/book-server/tags/v2.4.5
branch =
path = The branch test good.
The tags test worked as a side-effect of how it's implemented but not as prescribed. The branch and root-path fields are simply overlaying GIT semantics to Subversion. For subversion, checkout URL is built as url + branch + path. So, in practice you can put the branch or tag in either the branch or root-path. To comply with intended semantics, the user would specify either the branch or tag in the Branch field.
Example:
url=http://10.0.188.129/svn/mtaqe-svn/book-server
branch=trunk
path=
url=http://10.0.188.129/svn/mtaqe-svn/book-server

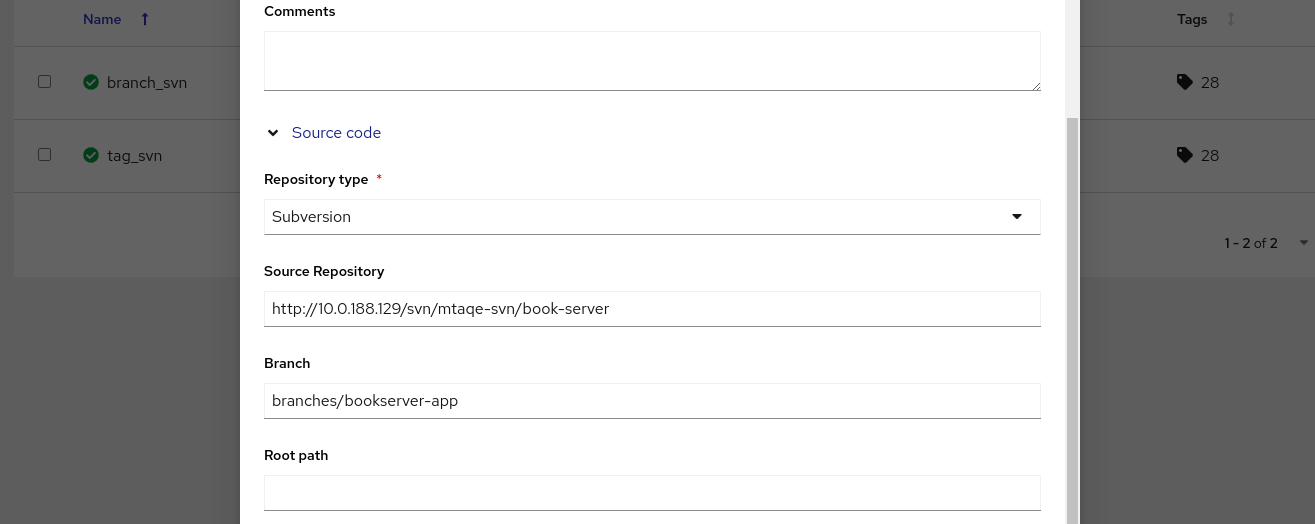

branch=branches/bookserver-app
path=
url=http://10.0.188.129/svn/mtaqe-svn/book-server
branch=tags/v2.4.5
path=
To be clear, the user may also define the branch or tag (and root path) in the url. This
Examples:
url=http://10.0.188.129/svn/mtaqe-svn/book-server/trunk
branch=
path=
url=http://10.0.188.129/svn/mtaqe-svn/book-server/branches/bookserver-app
branch=
path=
url=http://10.0.188.129/svn/mtaqe-svn/book-server/tags/v2.4.5
branch=
path=
The RootPath follows the same pattern. The GIT semantics here are that it represents the location of the application relative to the cloned repository tree defined by the url+branch.
Jeff Ortel
added a comment - - edited The branch test good.
The tags test worked as a side-effect of how it's implemented but not as prescribed. The branch and root-path fields are simply overlaying GIT semantics to Subversion. For subversion, checkout URL is built as url + branch + path . So, in practice you can put the branch or tag in either the branch or root-path. To comply with intended semantics, the user would specify either the branch or tag in the Branch field.
Example:
url = http://10.0.188.129/svn/mtaqe-svn/book-server
branch =trunk
path =
url = http://10.0.188.129/svn/mtaqe-svn/book-server
branch =branches/bookserver-app
path =
url = http://10.0.188.129/svn/mtaqe-svn/book-server
branch =tags/v2.4.5
path =
To be clear, the user may also define the branch or tag (and root path) in the url . This
Examples:
url = http://10.0.188.129/svn/mtaqe-svn/book-server/trunk
branch =
path =
url = http://10.0.188.129/svn/mtaqe-svn/book-server/branches/bookserver-app
branch =
path =
url = http://10.0.188.129/svn/mtaqe-svn/book-server/tags/v2.4.5
branch =
path =
The RootPath follows the same pattern. The GIT semantics here are that it represents the location of the application relative to the cloned repository tree defined by the url+branch.
Karishma Punwatkar
added a comment - Tested on MTA-7.2.0-33 Build

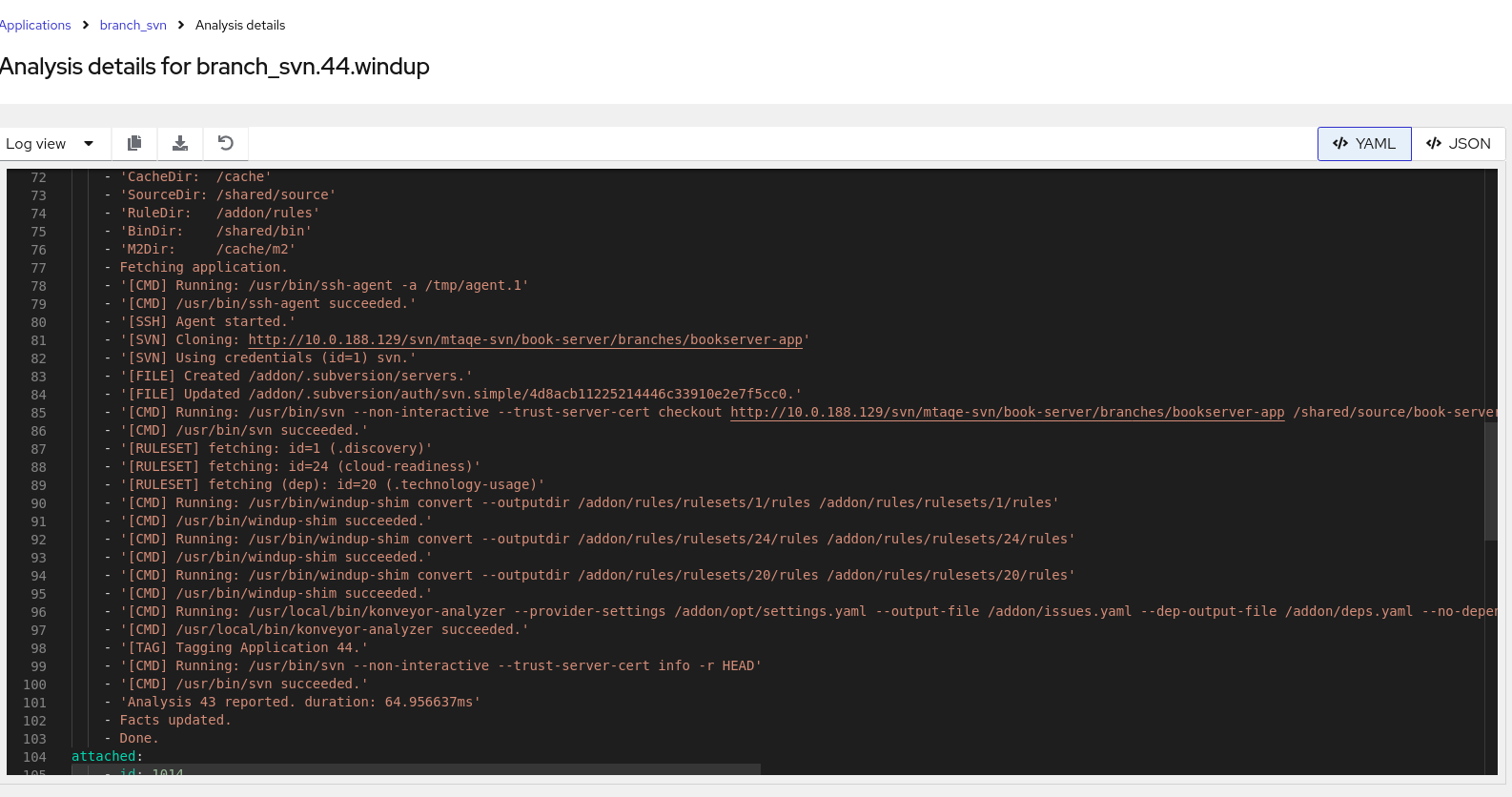

2. Scenarios we Tested "Analysis on SVN Repository with branch folder - Succeeded

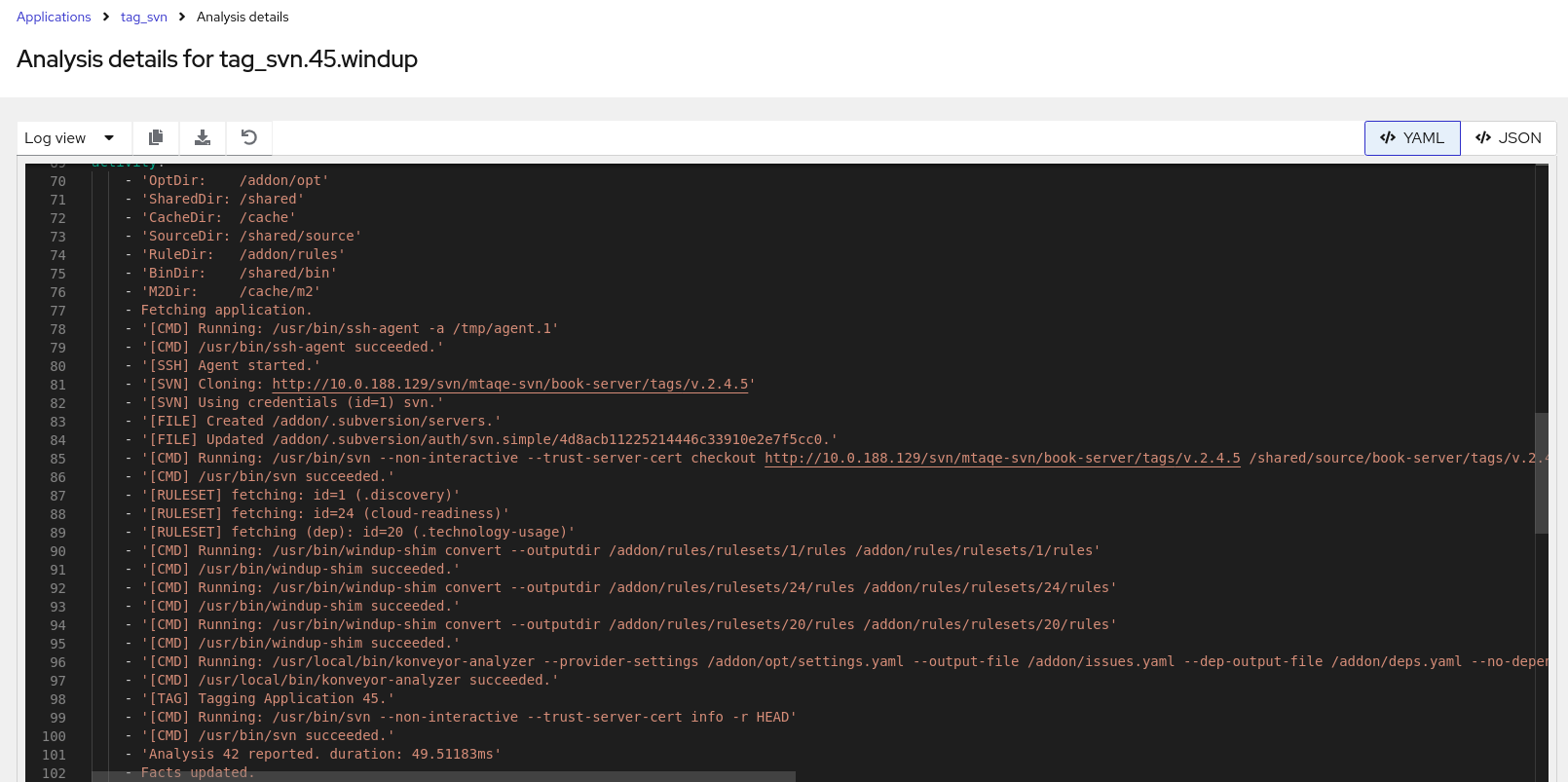

3. Scenarios we Tested "Analysis on SVN Repository with tag folder - Succeeded
Karishma Punwatkar
added a comment - Tested on MTA-7 .2.0-33 Build
2. Scenarios we Tested " Analysis on SVN Repository with branch folder - Succeeded
3. Scenarios we Tested " Analysis on SVN Repository with tag folder - Succeeded
Karishma Punwatkar
added a comment - We are yet to test for Scenarios Tags and Branch Tested on MTA-7.2.0-33 Build

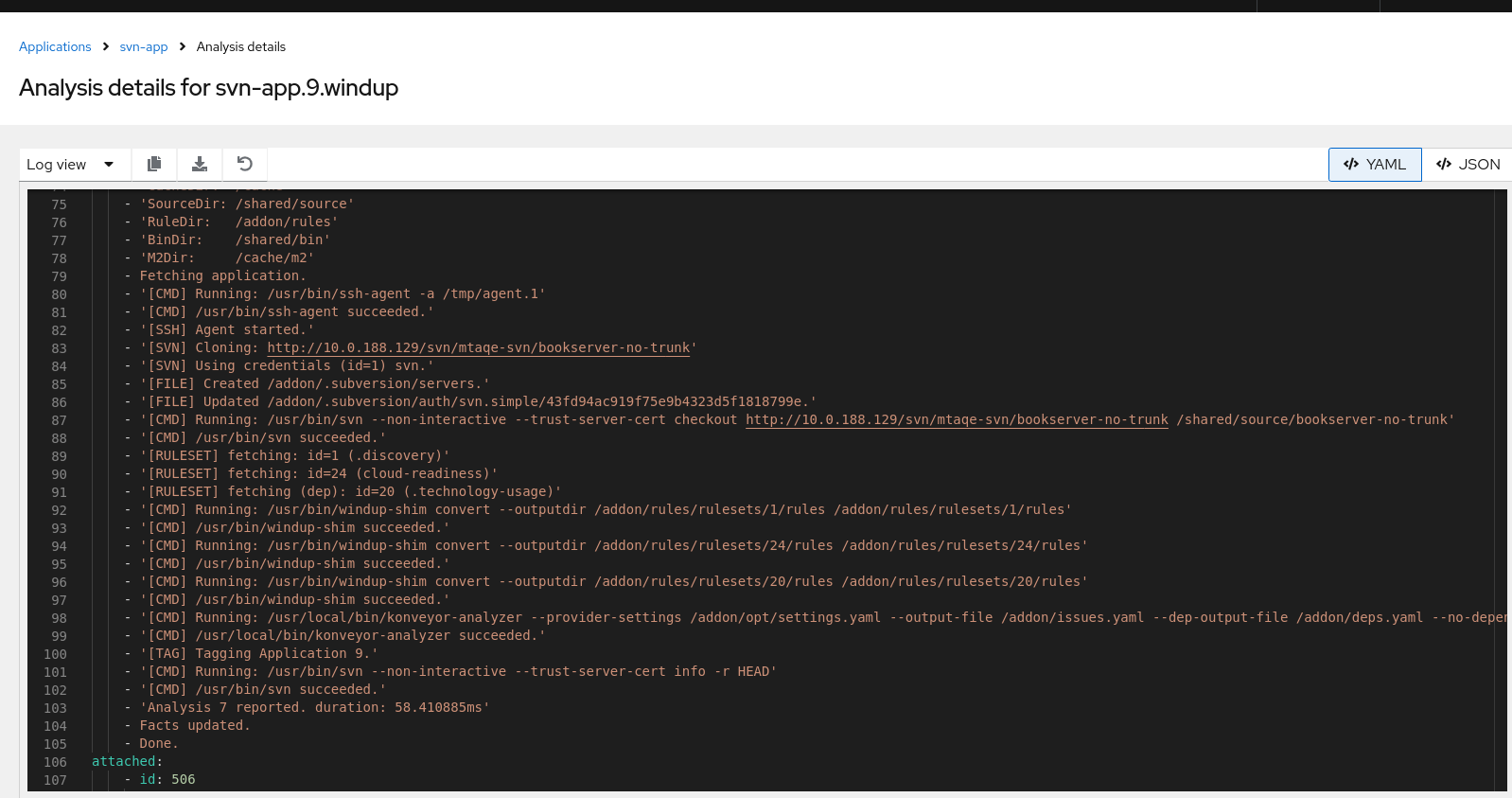

1. Scenarios we Tested "Analysis on SVN Repository without trunk folder" and Analysis on SVN Repository with trunk folder - Succeeded
Karishma Punwatkar
added a comment - - edited Tested on MTA-7 .2.0-33 Build
1. Scenarios we Tested " Analysis on SVN Repository without trunk folder " and Analysis on SVN Repository with trunk folder - Succeeded
jortel - thanks very much. Doc ticket created - https://issues.redhat.com/browse/MTA-4264
Since the problem described in this issue should be resolved in a recent advisory, it has been closed.
For information on the advisory (Migration Toolkit for Applications bug fix and enhancement update), and where to find the updated files, follow the link below.
If the solution does not work for you, open a new bug report.
https://access.redhat.com/errata/RHBA-2025:0501
