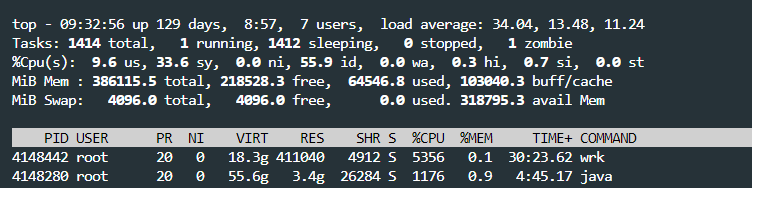

During using Facebook Airlift sample application to do benchmarking, the CPU user utilization is very low (about 10%) but CPU sys utilization is very high (about 34%) if we use wildfly-openssl as openssl provider and set the custom engine to QAT.

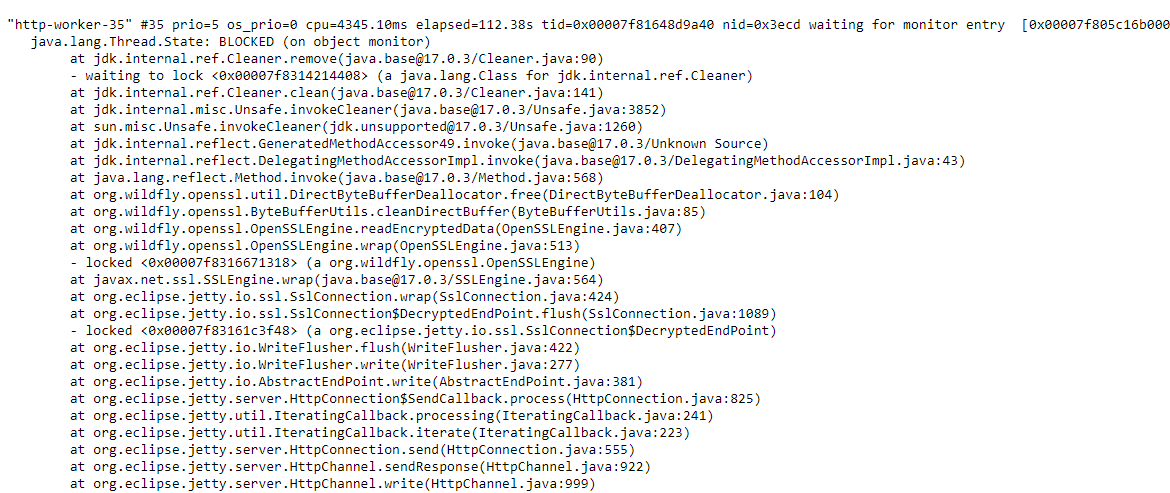

This is Java ThreadDump file

From the Java thread dump file, we can found the performance bottleneck is the ByteBuffer allocation.
