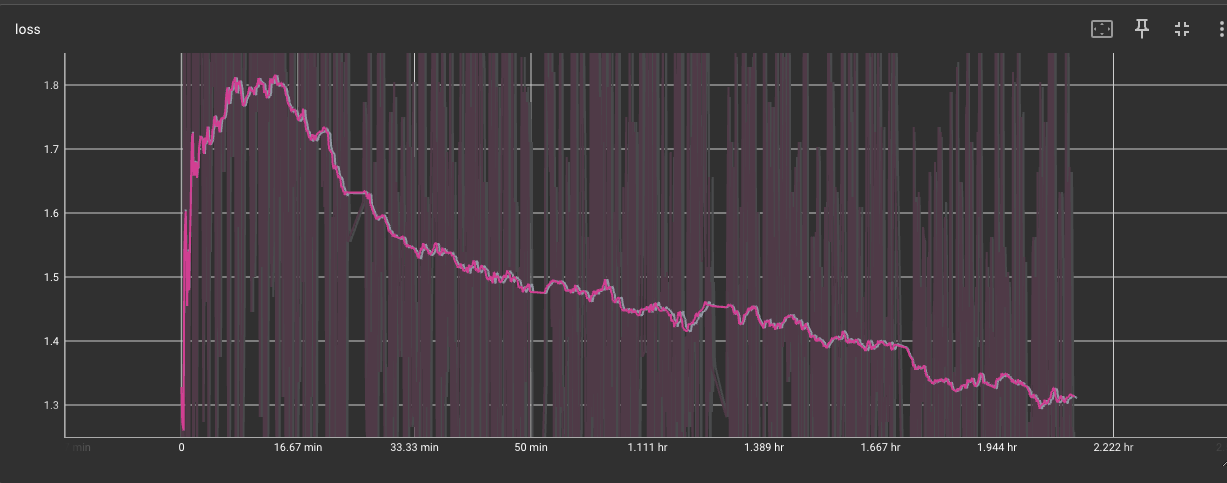

Showing loss parity between the two implementations:

This was when running on the `train_all_pruned_SDG.jsonl` data in the training repo.

Having loss parity is great because we can work on optimizing for higher batch sizes and therefore throughput.

I ran an experiment w/ liger kernels enabled in the `instructlab/training` repo. Observed loss parity between a control and an experimental run- kernels are mathematically correct for Granite.

Now profiling memory improvement from liger kernel addition which will allow us to increase batch size and achieve higher throughput.

I just got Granite support merged into the Liger Kernels codebase- integration into our code will happen after I’ve done some convergence tests

jgreene@redhat.com rhn-support-jkunstle should I assume this work is no longer happening?

Upstream contributor helped solve problem- convergence test model configuration was missing the GraniteConfig `logit_scaling` value required for outputs to be correct. PR has been rebased and is waiting for CI run.

Opened a PR here implementing a first pass of Liger Kernel support for Granite upstream.

Currently having some trouble because SwiGLU isn't logit-equivalent for Granite even in their testing suite.

I took some notes comparing the Llama architecture vs. Granite. All comparisons are against Llama{module}:
    - GraniteModel: everything is the same except for `self.embedding_multiplied` from config that scales the input embeds.
    - GranitePretrainedModel: identical
    - GraniteDecoderLayer: main diff is `residual_multiplier` applied to hidden_states during residual connection post-attention and post-FC layer.
    - GraniteMLP: identical
    - GraniteRMSNorm: identical
    - GraniteRotaryEmbedding: identical
    - GraniteAttention: nearly identical; granite has a slightly different attention multiplier from config
    - eager_attention_forward: identical
    - GraniteForCausalLM: only major difference is `logits = logits / self.config.logits_scaling`
    - LigerSwiGLUMLP vs. GraniteMLP: very similar, just calling a Silu triton kernel instead of directly calling the nn.Silu activation function
    - LigerRMSNormFunction vs. GraniteRMSNorm: not meaningfully different. Calls llama casting mode by default.

SwiGLU not being logit-equivalent is common between Llama and Granite models.

import torch
import transformers
from liger_kernel.transformers import apply_liger_kernel_to_llama
def get_model():
    return transformers.AutoModelForCausalLM.from_pretrained("meta-llama/Llama-3.1-8b-Instruct", attn_implementation="flash_attention_2", torch_dtype=torch.bfloat16).to(0)def get_data():
    return torch.zeros(1, 4096, dtype=torch.int).to(0)def run_forward(model, x):
    out = None
    with torch.no_grad():
        out = model(input_ids=x)    return outx = get_data()
model = get_model()
y_before = run_forward(model, x)
del model
del x
torch.cuda.empty_cache()

apply_liger_kernel_to_llama(
        rope=True,
        swiglu=False,
        cross_entropy=True,
        fused_linear_cross_entropy=False,
        rms_norm=False
        )x = get_data()
model = get_model()
y_after = run_forward(model, x)print(y_before)
print(y_after)
assert torch.allclose(y_before.logits, y_after.logits) # fails if swiglu is True

Finished a quick preliminary investigation.

Granite 3.0 and 3.1 models are nearly identical to Llama 3.0, 3.1 models, so we can reuse the code that `liger_kernel` uses to swap ops in the Granite 3.x models.

Currently, swapping RMSNorm and ROPE yields logit-identical outputs w/ a ~5% speedup on a very short forward-only benchmark. Adding SwiGLUMLP layer improves the speedup to ~8% but isn't logit-equivalent. I've read through the code differences between Granite and Llama, and native implementation isn't different, so there shouldn't be a difference between the two when the layer is swapped. To be investigated.

After discussing the improvements this brings to the training cycle with rhn-support-jkunstle, I agree to bring this as a RHEL AI 1.5 deliverable.

A few notes:

• Fused kernels should be drop-in replacements for a series of operations in a model's architecture. Generally, they should be mathematically equivalent, yielding: ```f = y = g(h(j(k)))```
• The liger kernel repository reports support for cuda and ROCm, being a Triton kernel implementation. This won't work for Gaudi.
• From looking at the HF model implementations, Granite 3.x and Llama 3.y seem to be very similar architecturally. The Liger kernel repo doesn't report support for Granite 3.x models but most of the work is hopefully already done w/ Llama 3.y support.
