Bug
-
Resolution: Done
-
Normal
-
None
-
rhel-9.5
-
No
-
Moderate
-
rhel-virt-windows
-
ssg_virtualization
-
None
-
QE ack
-
False
-
False
-
-
None
-
Red Hat Enterprise Linux
-
None
-
None
-
New Test Coverage
-
Unspecified
-
Unspecified
-
Unspecified
-
-
x86_64
-
Windows
-
None
What were you trying to do that didn't work?
virtio-win-pvpanic: The prewhql 271 build fails on Windows 10 1903 with VBS enabled. It only happens on the Win10.x86_64, no hit it on the Win10.i386. The workaround is to close the VBS function.
Please provide the package NVR for which the bug is seen:
- CPU=Intel(R) Xeon(R) Silver 4310 CPU @ 2.10GHz
- kernel-5.14.0-503.11.1.el9_5.x86_64
- seabios-bin-1.16.3-2.el9.noarch
- edk2-ovmf-20240524-6.el9_5.noarch
- qemu-kvm-core-9.0.0-10.el9_5.x86_64
- virtio-win-prewhql-0.1-271
How reproducible:
100%
Steps to reproduce
1. Boot a VM qemu cmdline at the bottom of this Jira issue.
2. Check this virtio-win-pvpanic driver status.
Expected results
pvpanic driver setup with VBS opened.
Actual results

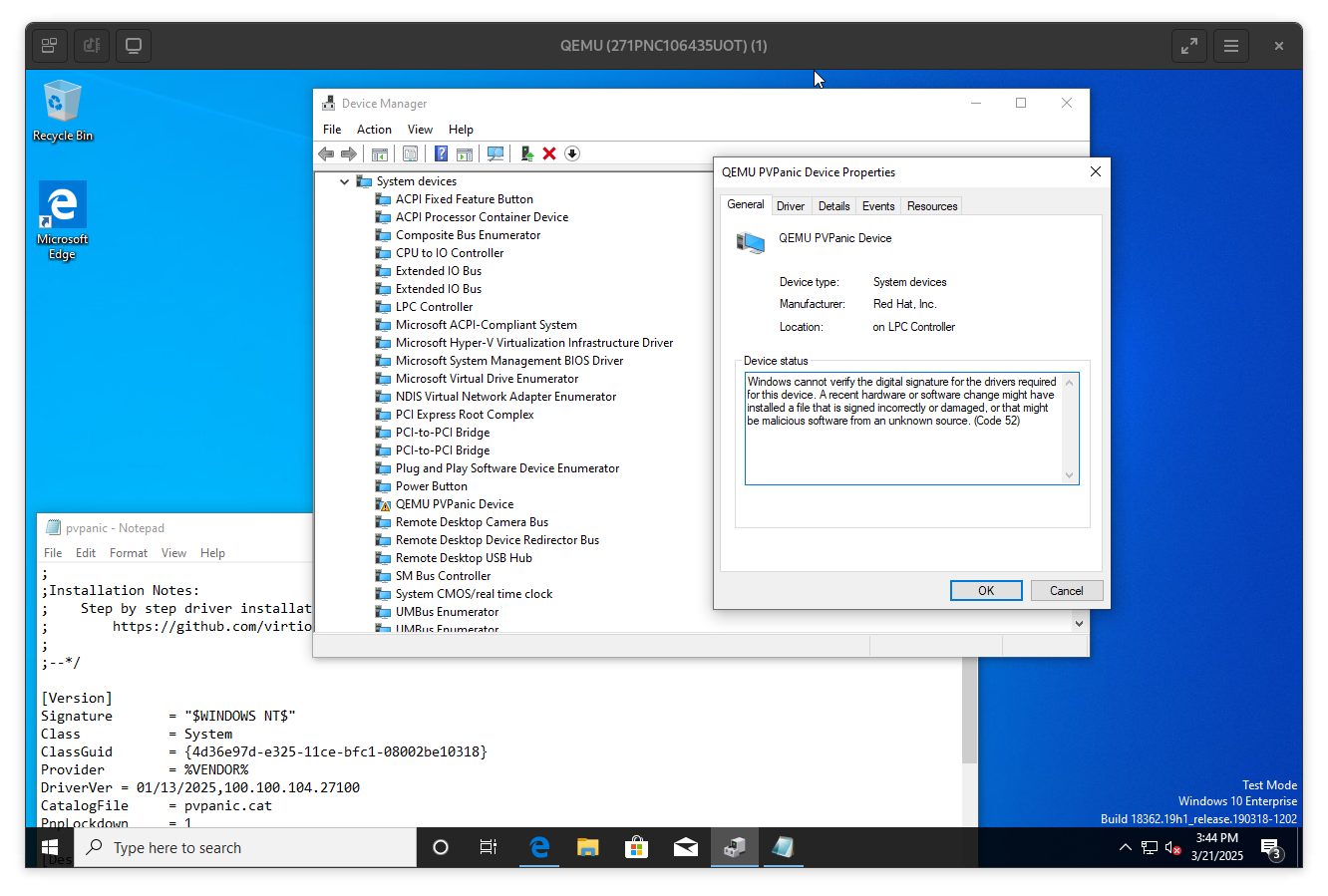

pvpanic driver setup with errors.
The whole qemu-kvm cmdline:
/usr/libexec/qemu-kvm \ -name 275PNC106435CZY \ -enable-kvm \ -m 4G \ -smp 4 \ -uuid a38a8d49-99f9-4db0-8c78-9d2f37dab9ad \ -nodefaults \ -cpu host,hv_stimer,hv_synic,hv_time,hv_vpindex,hv_relaxed,hv_spinlocks=0x1fff,hv_vapic,hv_frequencies,hv_runtime,hv_tlbflush,hv_reenlightenment,hv_stimer_direct,hv_ipi,vmx=on \ -chardev socket,id=charmonitor,path=/tmp/275PNC106435CZY,server=on,wait=off \ -mon chardev=charmonitor,id=monitor,mode=control \ -rtc base=localtime,driftfix=slew \ -boot order=cd,menu=on \ -device piix3-usb-uhci,id=usb \ -blockdev driver=file,cache.direct=off,cache.no-flush=on,filename=275PNC106435CZY,node-name=my_file \ -blockdev driver=raw,node-name=my,file=my_file \ -device ide-hd,drive=my,id=ide0-0-0,bus=ide.0,unit=0,bootindex=1 \ -blockdev driver=file,cache.direct=off,cache.no-flush=on,filename=/home/kvm_autotest_root/iso/ISO/Win10/en_windows_10_business_editions_version_1903_x64_dvd_37200948.iso,node-name=my_cd,read-only=on \ -blockdev driver=raw,node-name=mycd,file=my_cd,read-only=on \ -device ide-cd,drive=mycd,id=ide0-1-0,bus=ide.1,bootindex=2 \ -cdrom 275PNC106435CZY.iso \ -device usb-tablet,id=input0 \ -vnc 0.0.0.0:1 \ -blockdev driver=file,cache.direct=off,cache.no-flush=on,filename=/home/kvm_autotest_root/iso/windows/FOD.iso,node-name=my_iso,read-only=on \ -blockdev driver=raw,node-name=myiso,file=my_iso,read-only=on \ -device ide-cd,drive=myiso,id=ide0-1-1,bus=ide.4 \ -blockdev node-name=file_ovmf_code,driver=file,filename=275PNC106435CZY_ovmf/OVMF_CODE.secboot.fd,auto-read-only=on,discard=unmap \ -blockdev node-name=drive_ovmf_code,driver=raw,read-only=on,file=file_ovmf_code \ -blockdev node-name=file_ovmf_vars,driver=file,filename=275PNC106435CZY_ovmf/OVMF_VARS.fd,auto-read-only=on,discard=unmap \ -blockdev node-name=drive_ovmf_vars,driver=raw,read-only=off,file=file_ovmf_vars \ -machine q35,pflash0=drive_ovmf_code,pflash1=drive_ovmf_vars \ -device pcie-root-port,bus=pcie.0,id=root1.0,multifunction=on,port=0x10,chassis=1,addr=0x7 \ -device pcie-root-port,bus=pcie.0,id=root2.0,port=0x11,chassis=2,addr=0x7.0x1 \ -netdev tap,script=/etc/qemu-ifup1,downscript=no,id=hostnet0 \ -device e1000e,bus=root1.0,netdev=hostnet0,id=net0,mac=00:52:07:61:c9:72 \ -vga std \ -device pvpanic,id=pvpanic0,ioport=0x0505 \ -monitor telnet:localhost:1000,server,nowait
