Bug
-
Resolution: Done
-
Major
-
None
-
rhel-9.7
-
No
-
Important
-
rhel-virt-core
-
None
-
QE ack
-
False
-
False
-
-
None
-
Red Hat Enterprise Linux
-
None
-
None
-
New Test Coverage
-
Unspecified
-
Unspecified
-
Unspecified
-
-
x86_64
-
Linux
-
None
What were you trying to do that didn't work?

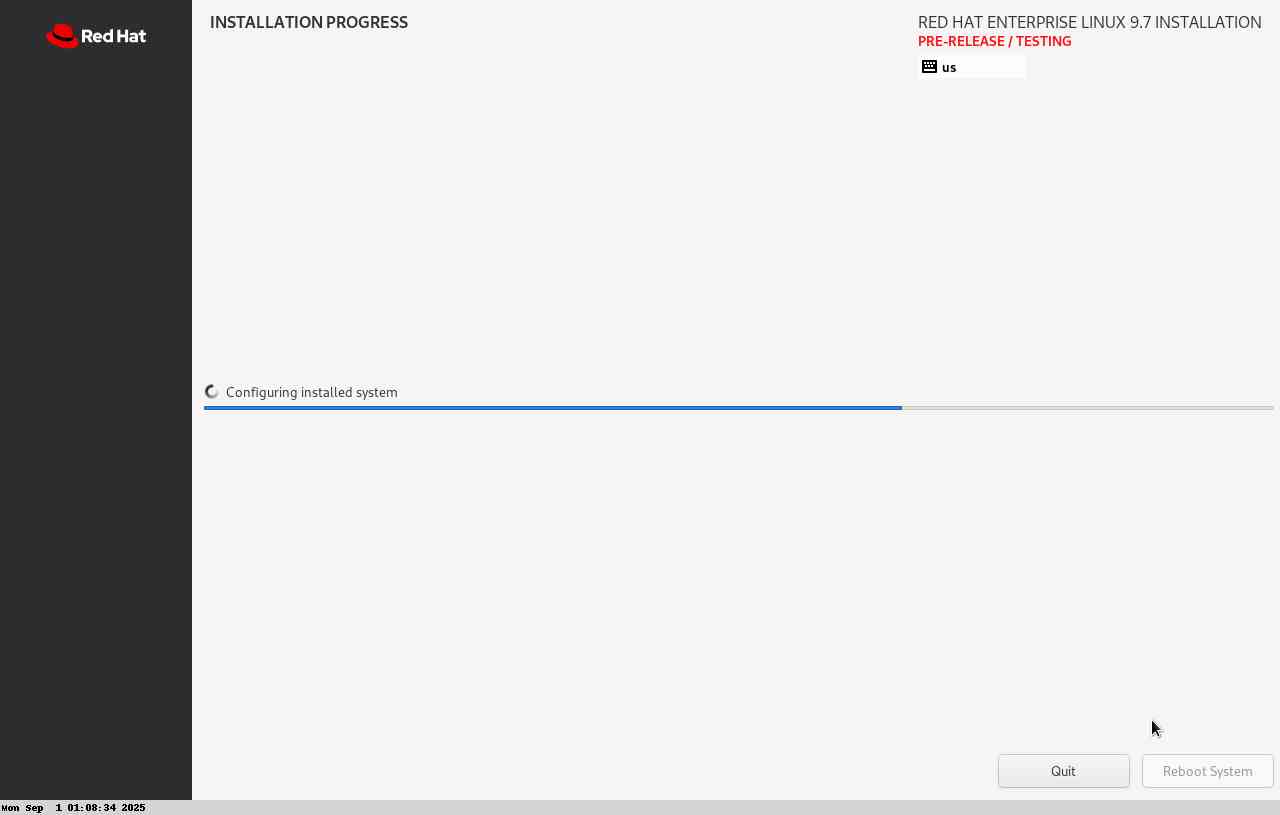

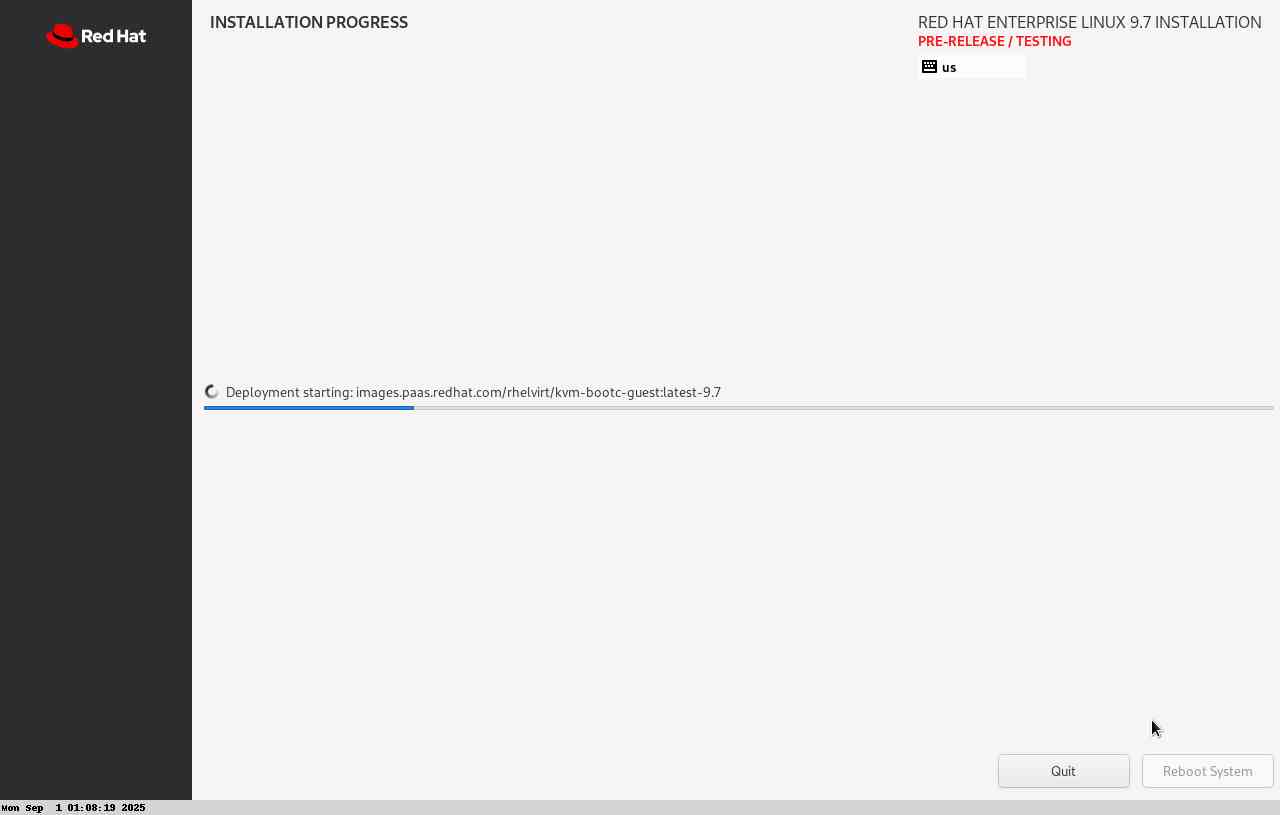

QE got a mission named "RHELMISC-16372 [dump_test] rhel-sst-virtualization-windows - SST Testing on Image Mode for RHEL9.7". During the testing of qemu_dump, QE found that installation windows suddenly went black and quit later. QE tried to boot the VM again, but the boot process could load for one or two seconds and then crash directly. Our avocado-vt returns "VM is dead due to a kernel crash, see debug/serial log for details". After this situation, QE tried to reinstall the same hardware machine with the same RHEL9.7 version in package mode, which showed that everything worked well.
Please provide the package NVR for which bug is seen:
- DISTRO=RHEL-9.7.0-20250826.5
- CPU=Intel(R) Xeon(R) Silver 4310 CPU @ 2.10GHz
- kernel-5.14.0-605.el9.x86_64
- seabios-bin-1.16.3-4.el9.noarch
- edk2-ovmf-20241117-4.el9.noarch
- swtpm-0.8.0-2.el9_4.x86_64
- qemu-kvm-core-9.1.0-25.el9.x86_64
How reproducible:
100%
Steps to reproduce
1. Boot the following qemu command line to set up the OS.
/usr/libexec/qemu-kvm \ -name 'avocado-vt-vm1' \ -sandbox on,elevateprivileges=deny,obsolete=deny,resourcecontrol=deny \ -blockdev '{"node-name": "file_ovmf_code", "driver": "file", "filename": "/usr/share/OVMF/OVMF_CODE.secboot.fd", "auto-read-only": true, "discard": "unmap"}' \ -blockdev '{"node-name": "drive_ovmf_code", "driver": "raw", "read-only": true, "file": "file_ovmf_code"}' \ -blockdev '{"node-name": "file_ovmf_vars", "driver": "file", "filename": "/root/avocado/data/avocado-vt/avocado-vt-vm1_rhel970-64-bootc-virtio-scsi-ovmf_qcow2_filesystem_VARS.raw", "auto-read-only": true, "discard": "unmap"}' \ -blockdev '{"node-name": "drive_ovmf_vars", "driver": "raw", "read-only": false, "file": "file_ovmf_vars"}' \ -machine q35,pflash0=drive_ovmf_code,pflash1=drive_ovmf_vars,memory-backend=mem-machine_mem \ -device '{"id": "pcie-root-port-0", "driver": "pcie-root-port", "multifunction": true, "bus": "pcie.0", "addr": "0x1", "chassis": 1}' \ -device '{"id": "pcie-pci-bridge-0", "driver": "pcie-pci-bridge", "addr": "0x0", "bus": "pcie-root-port-0"}' \ -nodefault\ -device '{"driver": "VGA", "bus": "pcie.0", "addr": "0x2"}' \ -m 125952 \ -objec'{"size": 132070244352, "id": "mem-machine_mem", "qom-type": "memory-backend-ram"}' \ -smp 24,maxcpus=24,cores=12,threads=1,dies=1,sockets=2 \ -cpu 'Icelake-Server',dtes64=on,vmx=on,pdcm=on,hypervisor=on,ds=on,ss=on,tsc-adjust=on,avx512ifma=on,sha-ni=on,rdpid=on,fsrm=on,md-clear=on,stibp=on,flush-l1d=on,arch-capabilities=on,xsaves=on,ibpb=on,ibrs=on,amd-stibp=on,amd-ssbd=on,rdctl-no=on,ibrs-all=on,skip-l1dfl-vmentry=on,mds-no=on,pschange-mc-no=on,tsx-ctrl=on,sbdr-ssdp-no=on,psdp-no=on,fb-clear=on,gds-no=on,rfds-no=on,vmx-ins-outs=on,vmx-true-ctls=on,vmx-store-lma=on,vmx-activity-hlt=on,vmx-activity-wait-sipi=on,vmx-vmwrite-vmexit-fields=on,vmx-apicv-xapic=on,vmx-ept=on,vmx-desc-exit=on,vmx-rdtscp-exit=on,vmx-apicv-x2apic=on,vmx-vpid=on,vmx-wbinvd-exit=on,vmx-unrestricted-guest=on,vmx-apicv-register=on,vmx-apicv-vid=on,vmx-rdrand-exit=on,vmx-invpcid-exit=on,vmx-vmfunc=on,vmx-shadow-vmcs=on,vmx-rdseed-exit=on,vmx-pml=on,vmx-xsaves=on,vmx-tsc-scaling=on,vmx-ept-execonly=on,vmx-page-walk-4=on,vmx-page-walk-5=on,vmx-ept-2mb=on,vmx-ept-1gb=on,vmx-invept=on,vmx-eptad=on,vmx-invept-single-context=on,vmx-invept-all-context=on,vmx-invvpid=on,vmx-invvpid-single-addr=on,vmx-invvpid-all-context=on,vmx-invept-single-context-noglobals=on,vmx-intr-exit=on,vmx-nmi-exit=on,vmx-vnmi=on,vmx-preemption-timer=on,vmx-posted-intr=on,vmx-vintr-pending=on,vmx-tsc-offset=on,vmx-hlt-exit=on,vmx-invlpg-exit=on,vmx-mwait-exit=on,vmx-rdpmc-exit=on,vmx-rdtsc-exit=on,vmx-cr3-load-noexit=on,vmx-cr3-store-noexit=on,vmx-cr8-load-exit=on,vmx-cr8-store-exit=on,vmx-flexpriority=on,vmx-vnmi-pending=on,vmx-movdr-exit=on,vmx-io-exit=on,vmx-io-bitmap=on,vmx-mtf=on,vmx-msr-bitmap=on,vmx-monitor-exit=on,vmx-pause-exit=on,vmx-secondary-ctls=on,vmx-exit-nosave-debugctl=on,vmx-exit-load-perf-global-ctrl=on,vmx-exit-ack-intr=on,vmx-exit-save-pat=on,vmx-exit-load-pat=on,vmx-exit-save-efer=on,vmx-exit-load-efer=on,vmx-exit-save-preemption-timer=on,vmx-entry-noload-debugctl=on,vmx-entry-ia32e-mode=on,vmx-entry-load-perf-global-ctrl=on,vmx-entry-load-pat=on,vmx-entry-load-efer=on,vmx-eptp-switching=on,hle=off,rtm=off,intel-pt=off,mpx=off,kvm_pv_unhalt=on \ -chardev socket,id=qmp_id_qmpmonitor1,server=on,wait=off,path=/var/tmp/avocado_2c1wfmoj/monitor-qmpmonitor1-20250901-010226-EW8cthz3 \ -mon chardev=qmp_id_qmpmonitor1,mode=contro\ -chardev socket,id=qmp_id_catch_monitor,server=on,wait=off,path=/var/tmp/avocado_2c1wfmoj/monitor-catch_monitor-20250901-010226-EW8cthz3 \ -mon chardev=qmp_id_catch_monitor,mode=contro\ -device '{"ioport": 1285, "driver": "pvpanic", "id": "idkQEF7t"}' \ -chardev socket,id=chardev_serial0,server=on,wait=off,path=/var/tmp/avocado_2c1wfmoj/serial-serial0-20250901-010226-EW8cthz3 \ -device '{"id": "serial0", "driver": "isa-serial", "chardev": "chardev_serial0"}' \ -chardev socket,id=seabioslog_id_20250901-010226-EW8cthz3,path=/var/tmp/avocado_2c1wfmoj/seabios-20250901-010226-EW8cthz3,server=on,wait=off \ -device isa-debugcon,chardev=seabioslog_id_20250901-010226-EW8cthz3,iobase=0x402 \ -device '{"id": "pcie-root-port-1", "port": 1, "driver": "pcie-root-port", "addr": "0x1.0x1", "bus": "pcie.0", "chassis": 2}' \ -device '{"driver": "qemu-xhci", "id": "usb1", "bus": "pcie-root-port-1", "addr": "0x0"}' \ -device '{"driver": "usb-tablet", "id": "usb-tablet1", "bus": "usb1.0", "port": "1"}' \ -device '{"id": "pcie-root-port-2", "port": 2, "driver": "pcie-root-port", "addr": "0x1.0x2", "bus": "pcie.0", "chassis": 3}' \ -device '{"id": "virtio_scsi_pci0", "driver": "virtio-scsi-pci", "bus": "pcie-root-port-2", "addr": "0x0"}' \ -blockdev '{"node-name": "file_image1", "driver": "file", "auto-read-only": true, "discard": "unmap", "aio": "threads", "filename": "/var/home/kvm_autotest_root/images/rhel970-64-bootc-virtio-scsi-ovmf.qcow2", "cache": {"direct": true, "no-flush": false}}' \ -blockdev '{"node-name": "drive_image1", "driver": "qcow2", "read-only": false, "cache": {"direct": true, "no-flush": false}, "file": "file_image1"}' \ -device '{"driver": "scsi-hd", "id": "image1", "drive": "drive_image1", "write-cache": "on"}' \ -device '{"id": "pcie-root-port-3", "port": 3, "driver": "pcie-root-port", "addr": "0x1.0x3", "bus": "pcie.0", "chassis": 4}' \ -device '{"driver": "virtio-net-pci", "mac": "9a:e6:35:dc:9c:be", "id": "idu0MHvi", "netdev": "idKVK6qF", "bus": "pcie-root-port-3", "addr": "0x0"}' \ -netdev '{"id": "idKVK6qF", "type": "tap", "vhost": true, "vhostfd": "16", "fd": "12"}' \ -blockdev '{"node-name": "drive_cd1", "driver": "file", "read-only": true, "discard": "unmap", "aio": "threads", "filename": "/var/home/kvm_autotest_root/iso/linux/RHEL-9.7.0-20250829.0-x86_64-dvd1.iso", "cache": {"direct": true, "no-flush": false}}' \ -device '{"driver": "scsi-cd", "id": "cd1", "drive": "drive_cd1", "write-cache": "on"}' \ -blockdev '{"node-name": "drive_unattended", "driver": "file", "read-only": true, "discard": "unmap", "aio": "threads", "filename": "/var/home/kvm_autotest_root/images/rhel970-64/ks.iso", "cache": {"direct": true, "no-flush": false}}' \ -device '{"driver": "scsi-cd", "id": "unattended", "drive": "drive_unattended", "write-cache": "on"}' \ -kerne'/var/home/kvm_autotest_root/images/rhel970-64/vmlinuz' \ -appen'inst.sshinst.ks=cdrom:/ks.cfnet.ifnames=0 inst.repo=cdrom console=ttyS0,115200' \ -initr'/var/home/kvm_autotest_root/images/rhel970-64/initrd.img' \ -vnc :0 \ -rtc base=utc,clock=host,driftfix=slew \ -boomenu=off,order=cdn,once=d,strict=off \ -no-shutdown \ -chardev socket,id=char_vtpm_avocado-vt-vm1_tpm0,path=/root/avocado/data/avocado-vt/swtpm/avocado-vt-vm1_tpm0_swtpm.sock \ -tpmdev emulator,chardev=char_vtpm_avocado-vt-vm1_tpm0,id=emulator_vtpm_avocado-vt-vm1_tpm0 \ -device '{"id": "tpm-crb_vtpm_avocado-vt-vm1_tpm0", "tpmdev": "emulator_vtpm_avocado-vt-vm1_tpm0", "driver": "tpm-crb"}' \ -enable-kvm \ -device '{"id": "pcie_extra_root_port_0", "driver": "pcie-root-port", "multifunction": true, "bus": "pcie.0", "addr": "0x3", "chassis": 5}'
Expected results
Sucessful installation without any error code, just like the package mode.
Actual results
"VM is dead due to a kernel crash, see debug/serial log for details" on the image mode.
