[2285725107] Upstream Reporter: Charles Moulliard
Upstream issue status: Open
Upstream description:

Describe the bug

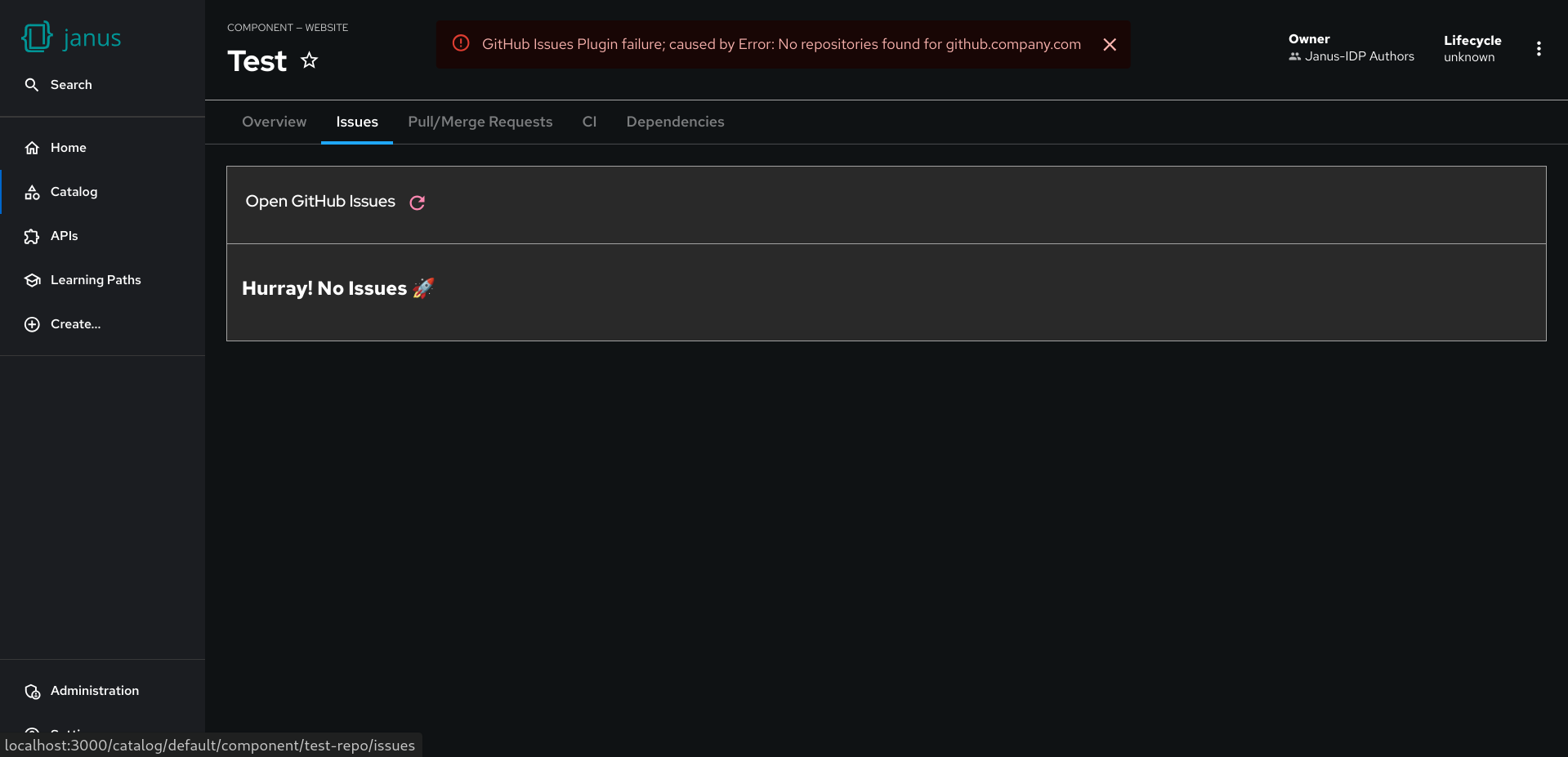

There is an auth issue as backstage requires to be authenticated using Github when we open the Component view - see screenshot.

Expected Behavior

No github auth should be requested

What are the steps to reproduce this bug?

git clone https://github.com/janus-idp/backstage-showcase; cd backstage-showcase
yarn install
yarn export-dynamic -- -- --dev
mkdir dynamic-plugins-root/_notused
cd dynamic-plugins-root
mv backstage-plugin-azure-devops _notused
mv backstage-plugin-azure-devops-backend-dynamic _notused
mv backstage-plugin-scaffolder-backend-module-azure-dynamic _notused

• Create the app-config.local.yaml file using the following code Remark: Replace the xxxxxxxxxxxxx with your Github Access token.

cat <<EOF > app-config.local.yaml
organization:
  name: Quarkus Org

integrations:
  gitlab:
    - host: gitlab.com
  github:
    - host: github.com
      token: xxxxxxxxxxxxx

proxy:
  skipInvalidProxies: true
  endpoints:
    '/argocd/api':
      target: https://openshift-gitops-server-openshift-gitops.apps.qshift.snowdrop.dev/api/v1/
      changeOrigin: true
      secure: false
      headers:
        Cookie:
          $env: "argocd.token=eyJhbGciOiJIUz..EktDnyZbQA="

auth:
  environment: development
  providers:
    guest: {}

catalog:
  import:
    entityFilename: catalog-info.yaml
  rules:
    - allow: [Template,Location,Component,System,Resource,User,Group,Api]
  locations:
    - type: url
      target: https://github.com/ch007m/qshift-templates/blob/static-lists/qshift/all.yaml
      rules:
        - allow: [Template,Location,Component,System,Resource,User,Group,Api]

  providers:
    ocm:
      env:
        kubernetesPluginRef: ocp-qshift

argocd:
  baseUrl: https://openshift-gitops-server-openshift-gitops.apps.qshift.snowdrop.dev
  username: admin
  password: hU5ksdnFxK1qiH9gflR6jZIbz7BGQDEX
  appLocatorMethods:
    - type: config
      instances:
        - name: argocdQShift
          url: https://openshift-gitops-server-openshift-gitops.apps.qshift.snowdrop.dev

kubernetes:
  serviceLocatorMethod:
    type: 'multiTenant'
  clusterLocatorMethods:
    - type: 'config'
      clusters:
        - url: https://api.qshift.snowdrop.dev:6443 # https://kubernetes.default.svc
          name: ocp-qshift
          skipTLSVerify: true
          authProvider: 'serviceAccount'
          skipMetricsLookup: true
          serviceAccountToken: eyJhbGciOiJ...JZ0JU3GHV00--Eqp0xNi6Xv9Ih8ucTkQw2vnBm20
customResources:
    - group: 'tekton.dev'
      apiVersion: 'v1'
      plural: 'pipelineruns'
    - group: 'tekton.dev'
      apiVersion: 'v1'
      plural: 'taskruns'
    - apiVersion: 'v1'
      group: 'route.openshift.io'
      plural: 'routes'

## Content hereafter is coming from the file: app-config.dynamic-plugins.yaml
dynamicPlugins:
  frontend:
    backstage.plugin-azure-devops:
      mountPoints:
        - mountPoint: entity.page.ci/cards
          importName: EntityAzurePipelinesContent
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - isAzureDevOpsAvailable
        - mountPoint: entity.page.pull-requests/cards
          importName: EntityAzurePullRequestsContent
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - isAzureDevOpsAvailable
    backstage.plugin-dynatrace:
      mountPoints:
        - mountPoint: entity.page.monitoring/cards
          importName: DynatraceTab
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - isDynatraceAvailable
    backstage.plugin-github-actions:
      mountPoints:
        - mountPoint: entity.page.ci/cards
          importName: EntityGithubActionsContent
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - isGithubActionsAvailable
    backstage.plugin-github-issues:
      mountPoints:
        - mountPoint: entity.page.issues/cards
          importName: GithubIssuesCard
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - hasAnnotation: github.com/project-slug
    backstage.plugin-jenkins:
      mountPoints:
        - mountPoint: entity.page.ci/cards
          importName: EntityJenkinsContent
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - isJenkinsAvailable
    backstage.plugin-kubernetes:
      mountPoints:
        - mountPoint: entity.page.kubernetes/cards
          importName: EntityKubernetesContent
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              anyOf:
                - hasAnnotation: backstage.io/kubernetes-id
                - hasAnnotation: backstage.io/kubernetes-namespace
    backstage.plugin-lighthouse:
      appIcons:
        - name: lighthouse
          importName: LighthouseIcon
      dynamicRoutes:
        - path: /lighthouse
          importName: LighthousePage
          menuItem:
            icon: lighthouse
            text: Lighthouse
      mountPoints:
        - mountPoint: entity.page.overview/cards
          importName: EntityLastLighthouseAuditCard
          config:
            layout:
              gridColumnEnd:
                md: "span 6"
                xs: "span 12"
            if:
              allOf:
                - isLighthouseAvailable
    pagerduty.backstage-plugin:
      mountPoints:
        - mountPoint: entity.page.overview/cards
          importName: EntityPagerDutyCard
          config:
            layout:
              gridColumnEnd:
                md: "span 6"
                xs: "span 12"
            if:
              allOf:
                - isPluginApplicableToEntity
    backstage.plugin-sonarqube:
      mountPoints:
        - mountPoint: entity.page.overview/cards
          importName: EntitySonarQubeCard
          config:
            layout:
              gridColumnEnd:
                lg: "span 4"
                md: "span 6"
                xs: "span 12"
            if:
              allOf:
                - isSonarQubeAvailable
    immobiliarelabs.backstage-plugin-gitlab:
      mountPoints:
        - mountPoint: entity.page.overview/cards
          importName: EntityGitlabMergeRequestStatsCard
          config:
            layout:
              gridColumnEnd:
                lg: "span 4"
                md: "span 6"
                xs: "span 12"
            if:
              allOf:
                - isGitlabAvailable
        - mountPoint: entity.page.ci/cards
          importName: EntityGitlabPipelinesTable
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - isGitlabAvailable
        - mountPoint: entity.page.issues/cards
          importName: EntityGitlabIssuesTable
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - isGitlabAvailable
        - mountPoint: entity.page.pull-requests/cards
          importName: EntityGitlabMergeRequestsTable
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - isGitlabAvailable
    janus-idp.backstage-plugin-acr:
      mountPoints:
        - mountPoint: entity.page.image-registry/cards
          importName: AcrPage
          config:
            layout:
              gridColumn: 1 / -1
            if:
              anyOf:
              - isAcrAvailable
    janus-idp.backstage-plugin-jfrog-artifactory:
      mountPoints:
        - mountPoint: entity.page.image-registry/cards
          importName: JfrogArtifactoryPage
          config:
            layout:
              gridColumn: 1 / -1
            if:
              anyOf:
              - isJfrogArtifactoryAvailable
    janus-idp.backstage-plugin-nexus-repository-manager:
      mountPoints:
        - mountPoint: entity.page.image-registry/cards
          importName: NexusRepositoryManagerPage
          config:
            layout:
              gridColumn: 1 / -1
            if:
              anyOf:
              - isNexusRepositoryManagerAvailable
    janus-idp.backstage-plugin-ocm:
      appIcons:
        - name: ocmIcon
          importName: OcmIcon
      dynamicRoutes:
        - path: /ocm
          importName: OcmPage
          menuItem:
            icon: ocmIcon
            text: Clusters
      mountPoints:
        - mountPoint: entity.page.overview/context
          importName: ClusterContextProvider
        - mountPoint: entity.page.overview/cards
          importName: ClusterAvailableResourceCard
          config:
            layout:
              gridColumnEnd:
                lg: "span 4"
                md: "span 6"
                xs: "span 12"
            if:
              allOf:
              - isKind: resource
              - isType: kubernetes-cluster
        - mountPoint: entity.page.overview/cards
          importName: ClusterInfoCard
          config:
            layout:
              gridColumnEnd:
                lg: "span 4"
                md: "span 6"
                xs: "span 12"
            if:
              allOf:
              - isKind: resource
              - isType: kubernetes-cluster
    janus-idp.backstage-plugin-quay:
      mountPoints:
        - mountPoint: entity.page.image-registry/cards
          importName: QuayPage
          config:
            layout:
              gridColumn: 1 / -1
            if:
              anyOf:
              - isQuayAvailable
    janus-idp.backstage-plugin-tekton:
      mountPoints:
        - mountPoint: entity.page.ci/cards
          importName: TektonCI
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - isTektonCIAvailable
    janus-idp.backstage-plugin-topology:
      mountPoints:
        - mountPoint: entity.page.topology/cards
          importName: TopologyPage
          config:
            layout:
              gridColumn: "1 / -1"
              height: 75vh
            if:
              anyOf:
                - hasAnnotation: backstage.io/kubernetes-id
                - hasAnnotation: backstage.io/kubernetes-namespace
    roadiehq.backstage-plugin-argo-cd:
      mountPoints:
        - mountPoint: entity.page.overview/cards
          importName: EntityArgoCDOverviewCard
          config:
            layout:
              gridColumnEnd:
                lg: "span 8"
                xs: "span 12"
            if:
              allOf:
                - isArgocdAvailable
        - mountPoint: entity.page.cd/cards
          importName: EntityArgoCDHistoryCard
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - isArgocdAvailable
    roadiehq.backstage-plugin-datadog:
      mountPoints:
        - mountPoint: entity.page.monitoring/cards
          importName: EntityDatadogContent
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - isDatadogAvailable
    roadiehq.backstage-plugin-github-insights:
      mountPoints:
        - mountPoint: entity.page.overview/cards
          importName: EntityGithubInsightsComplianceCard
          config:
            layout:
              gridColumnEnd:
                lg: "span 4"
                md: "span 6"
                xs: "span 12"
            if:
              allOf:
                - isGithubInsightsAvailable
    roadiehq.backstage-plugin-github-pull-requests:
      mountPoints:
        - mountPoint: entity.page.overview/cards
          importName: EntityGithubPullRequestsOverviewCard
          config:
            layout:
              gridColumnEnd:
                lg: "span 4"
                md: "span 6"
                xs: "span 12"
            if:
              allOf:
                - isGithubPullRequestsAvailable
        - mountPoint: entity.page.pull-requests/cards
          importName: EntityGithubPullRequestsContent
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - isGithubPullRequestsAvailable
    roadiehq.backstage-plugin-jira:
      mountPoints:
        - mountPoint: entity.page.issues/cards
          importName: EntityJiraOverviewCard
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - isJiraAvailable
    roadiehq.backstage-plugin-security-insights:
      mountPoints:
        - mountPoint: entity.page.overview/cards
          importName: EntityDependabotAlertsCard
          config:
            layout:
              gridColumnEnd:
                lg: "span 4"
                md: "span 6"
                xs: "span 12"
            if:
              allOf:
                - isSecurityInsightsAvailable
    backstage.plugin-techdocs:
      routeBindings:
        targets:
          - importName: techdocsPlugin
        bindings:
          - bindTarget: catalogPlugin.externalRoutes
            bindMap:
              viewTechDoc: techdocsPlugin.routes.docRoot
          - bindTarget: scaffolderPlugin.externalRoutes
            bindMap:
              viewTechDoc: techdocsPlugin.routes.docRoot
      dynamicRoutes:
        - path: /docs
          importName: TechDocsIndexPage
          menuItem:
            icon: docs
            text: Docs
        - path: /docs/:namespace/:kind/:name/*
          importName: TechDocsReaderPage
      mountPoints:
        - mountPoint: entity.page.docs/cards
          importName: EntityTechdocsContent
          config:
            layout:
              gridColumn: "1 / -1"
            if:
              allOf:
                - isTechDocsAvailable
        - mountPoint: search.page.results
          importName: TechDocsSearchResultListItem
        - mountPoint: search.page.filters
          importName: TechdocsSearchFilter
        - mountPoint: search.page.types
          importName: techdocsSearchType
          config:
            props:
              name: Documentation
              icon: docs
    backstage.plugin-tech-radar:
      apiFactories:
        - importName: TechRadarApi
      appIcons:
        - name: techRadar
          importName: TechRadarIcon
      dynamicRoutes:
        - path: /tech-radar
          importName: TechRadarPage
          menuItem:
            icon: techRadar
            text: Tech Radar
          config:
            props:
              width: 1500
              height: 800
    janus-idp.backstage-plugin-analytics-provider-segment:
      apiFactories:
        - importName: SegmentAnalyticsApi
EOF

• Launch backstage front and backend using:

export NODE_OPTIONS=--no-node-snapshot
yarn start

Versions of software used and environment
