Bug
-
Resolution: Unresolved
-
Critical
-
None
-
quay-v3.16.0, quay-v3.16.1
-
None
-
False
-
-
False
-
-
Description:
This is an issue found in Quay 3.16.1, with managed Monitoring Component find the default Quay OCP dashboard can't display Quay metrics on OCP Console, but actually the Quay Metrics is exposed successfully at "/metrics", pls review this issue
Note: the same issue is also existed in Quay 3.16.0
OCP Version: 4.20
Quay Metrics:
quay_org_rows{host="quayregistry-quay-app-6b5b5d7b5-dbxvn",instance="",job="quay",pid="69",process_name="globalpromstats.py"} 2
quay_repository_rows{host="quayregistry-quay-app-6b5b5d7b5-dbxvn",instance="",job="quay",pid="69",process_name="globalpromstats.py"} 1
quay_robot_rows{host="quayregistry-quay-app-6b5b5d7b5-dbxvn",instance="",job="quay",pid="69",process_name="globalpromstats.py"} 1
Quay 3.16.1:
oc get svc NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE quayregistry-clair-app ClusterIP 172.30.149.174 <none> 80/TCP,8089/TCP 92m quayregistry-clair-postgres ClusterIP 172.30.170.110 <none> 5432/TCP 92m quayregistry-quay-app ClusterIP 172.30.95.65 <none> 443/TCP,80/TCP,8081/TCP,55443/TCP 92m quayregistry-quay-database ClusterIP 172.30.2.19 <none> 5432/TCP 92m quayregistry-quay-metrics ClusterIP 172.30.165.155 <none> 9091/TCP 78m quayregistry-quay-redis ClusterIP 172.30.162.152 <none> 6379/TCP 92m

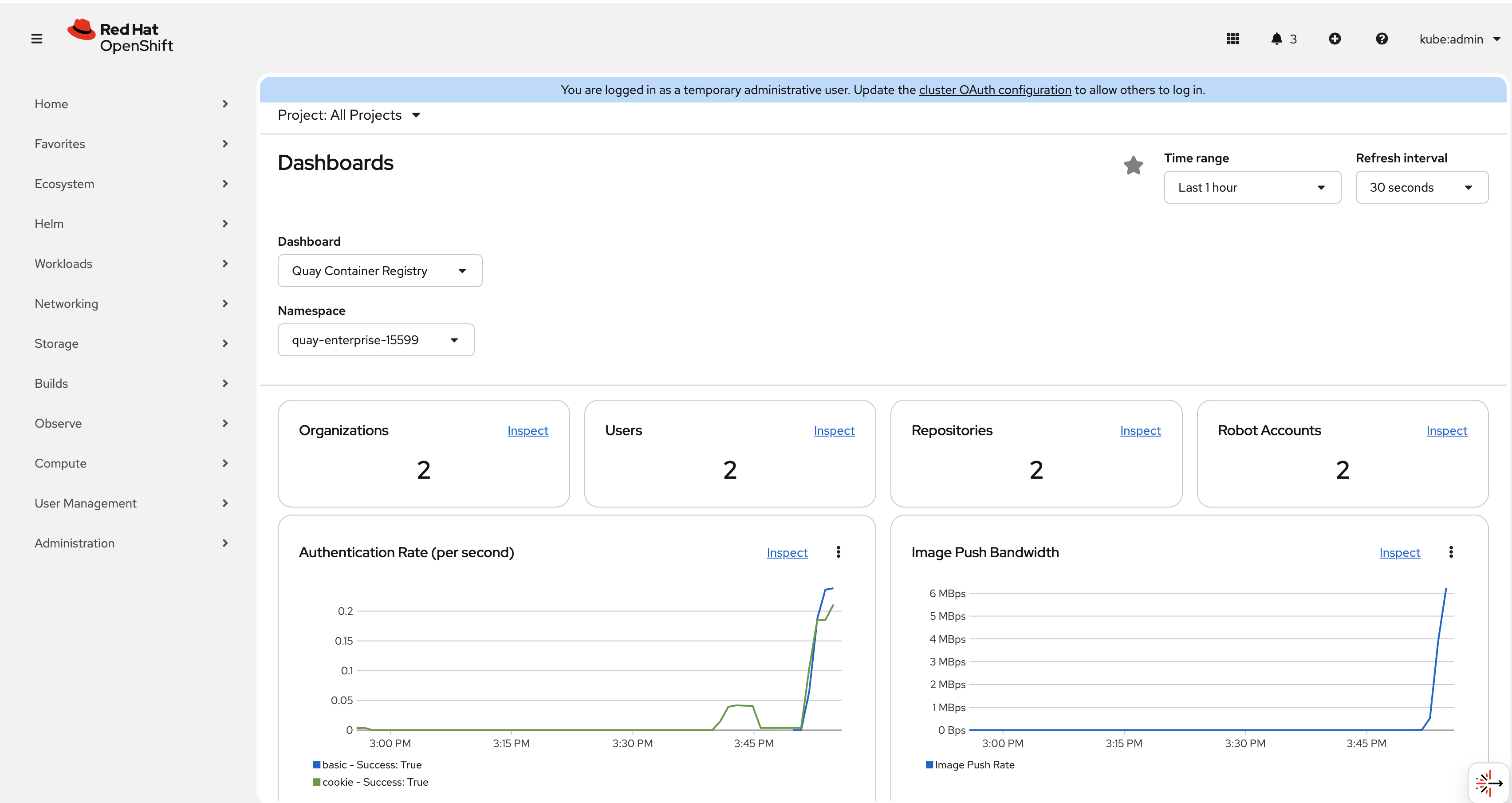

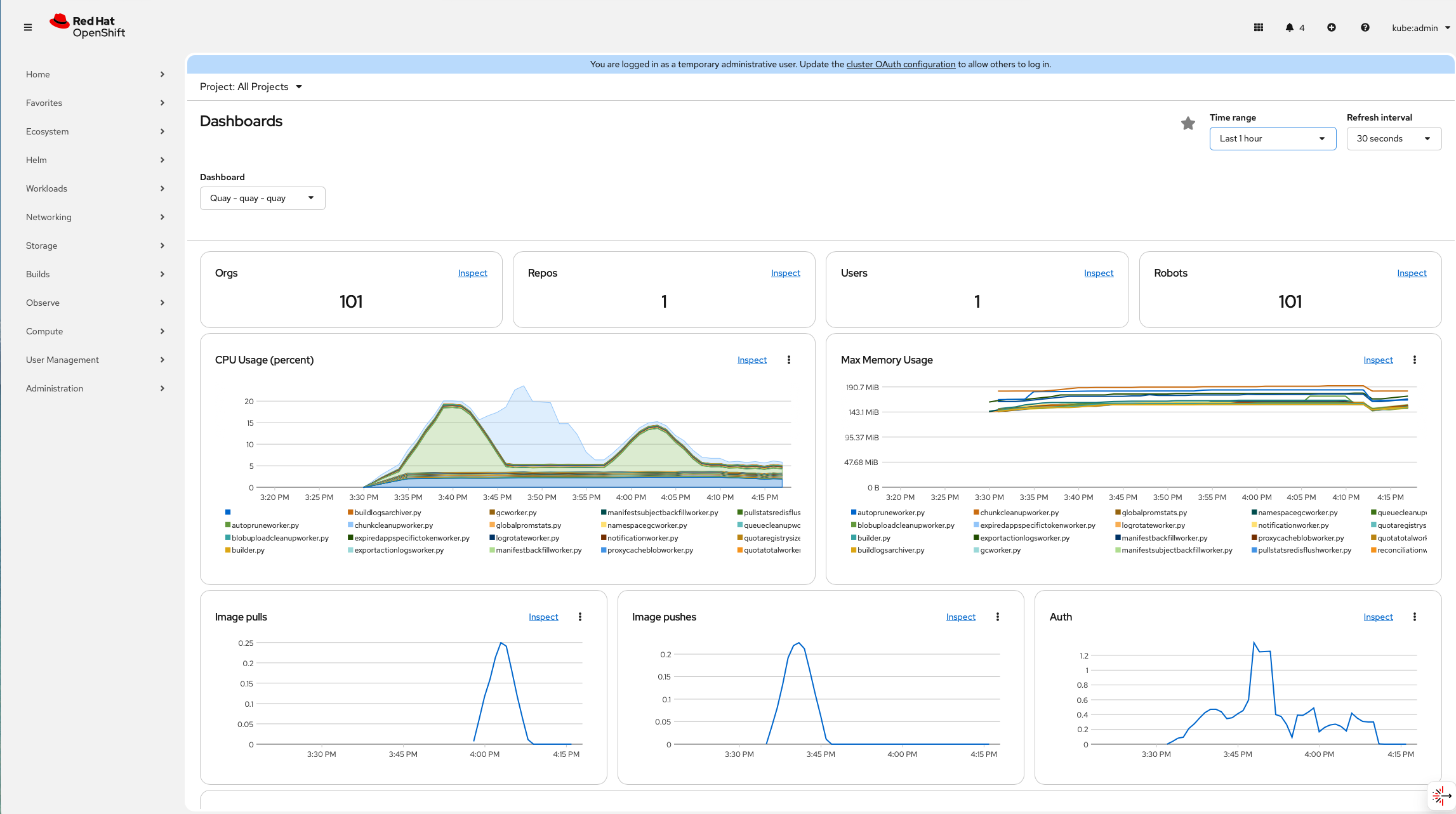

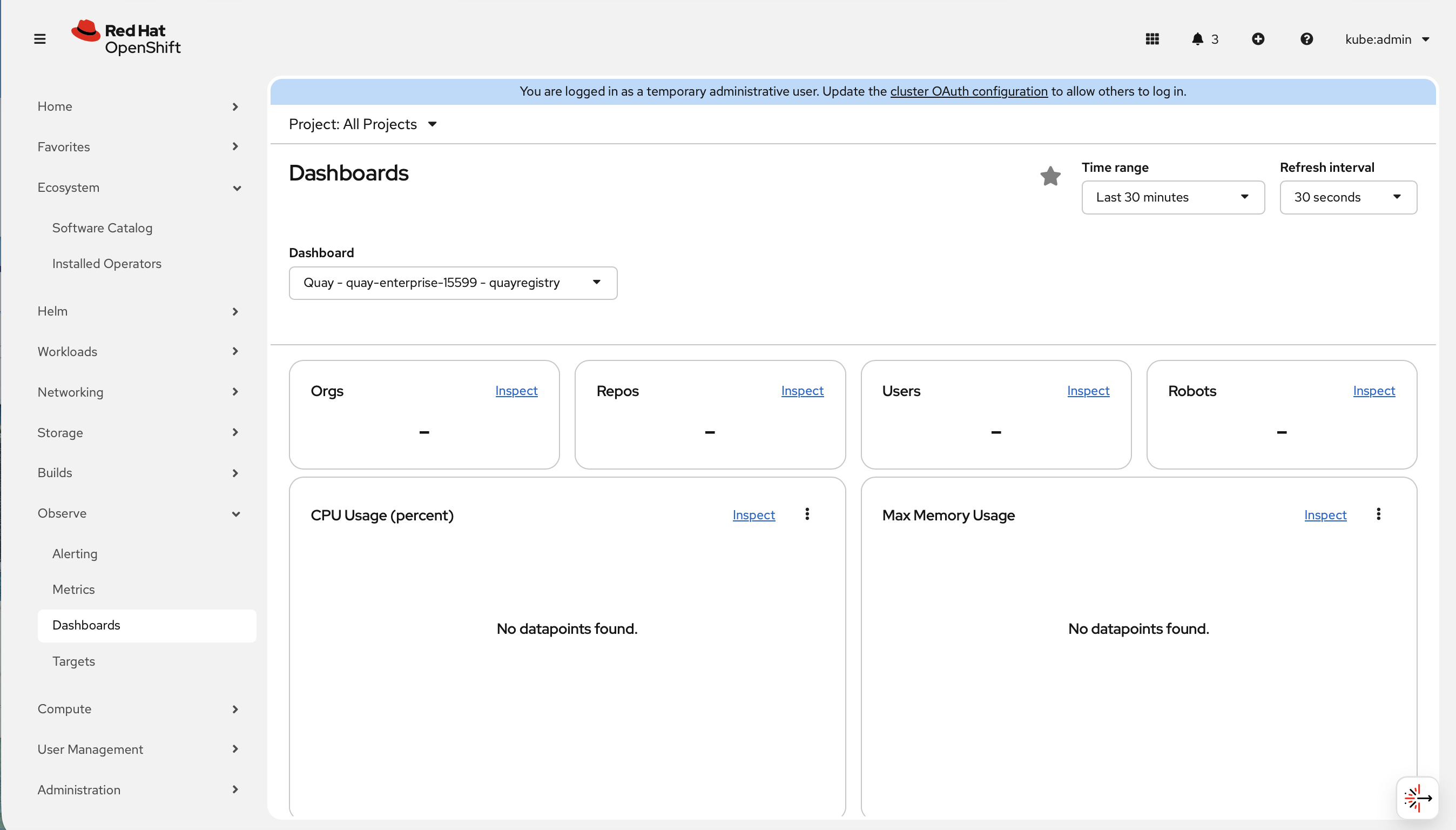

Quay default OCP Metrics Dashboard can't display Quay metrics:
