create a network graph for osp operator BM setup

This issue belongs to an archived project. You can view it, but you can't modify it. Learn more

XMLWordPrintable

    • Icon: Sub-task Sub-task
    • Resolution: Done
    • Icon: Major Major
    • None
    • None
    • 1
    • False
    • Hide

      None

      Show
      None
    • False
    • QE Sprint 2

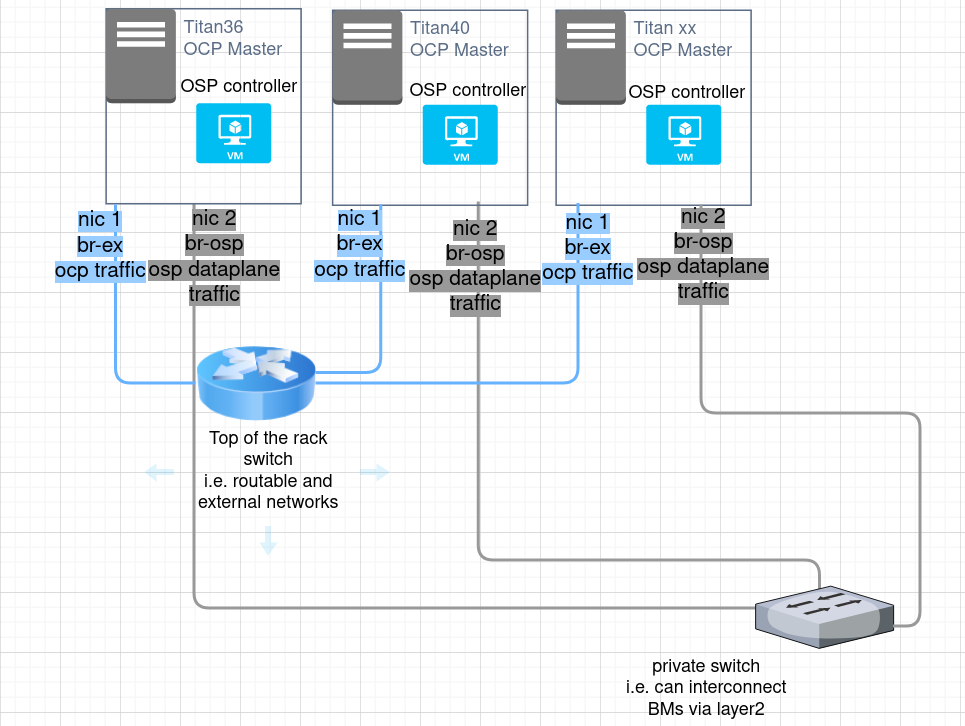

      about network connectivity between the BMs :

      current planned configuration:
      br-ex - to router
      br - osp on private switch -
      provision nic - private switch

      • the same nics order for all networks
        compute node - same as masters BMs

      WIP here : https://app.diagrams.net/#G1U6pBaHsSTPflqr0itjYRBhQLgZLF7F84

        1. image-2022-03-09-15-35-42-142.png
