While provisioning 3618 SNOs using ZTP with ACM 2.9, it was observed a large slow down in the completion times for SNOs to successfully complete installs.  This seems to start around 1800 managed clusters and continue on for the remainder of the test. Using the same deployed OCP and ACM version but with a 4.13 hub, this issue is not observed.

Approximate difference in timing for clusters to install between two hub ocp versions.

4.14 Hub
Count: 3571
Min: 2915.0
Average: 9191.5
50 percentile: 6537.0
95 percentile: 16942.5
99 percentile: 17948.5
Max: 21003.0

4.13 Hub
Count: 3555
Min: 2579.0
Average: 4036.5
50 percentile: 4046.0
95 percentile: 4868.3
99 percentile: 5174.8
Max: 5741.0

Hub OCP 4.14.0-rc.0
Deployed SNO - 4.14.0-rc.0 (similiar slow down also witnessed with 4.14.0-rc.1)
ACM - 2.9.0-DOWNSTREAM-2023-09-07-04-47-52

1.
2.
3.

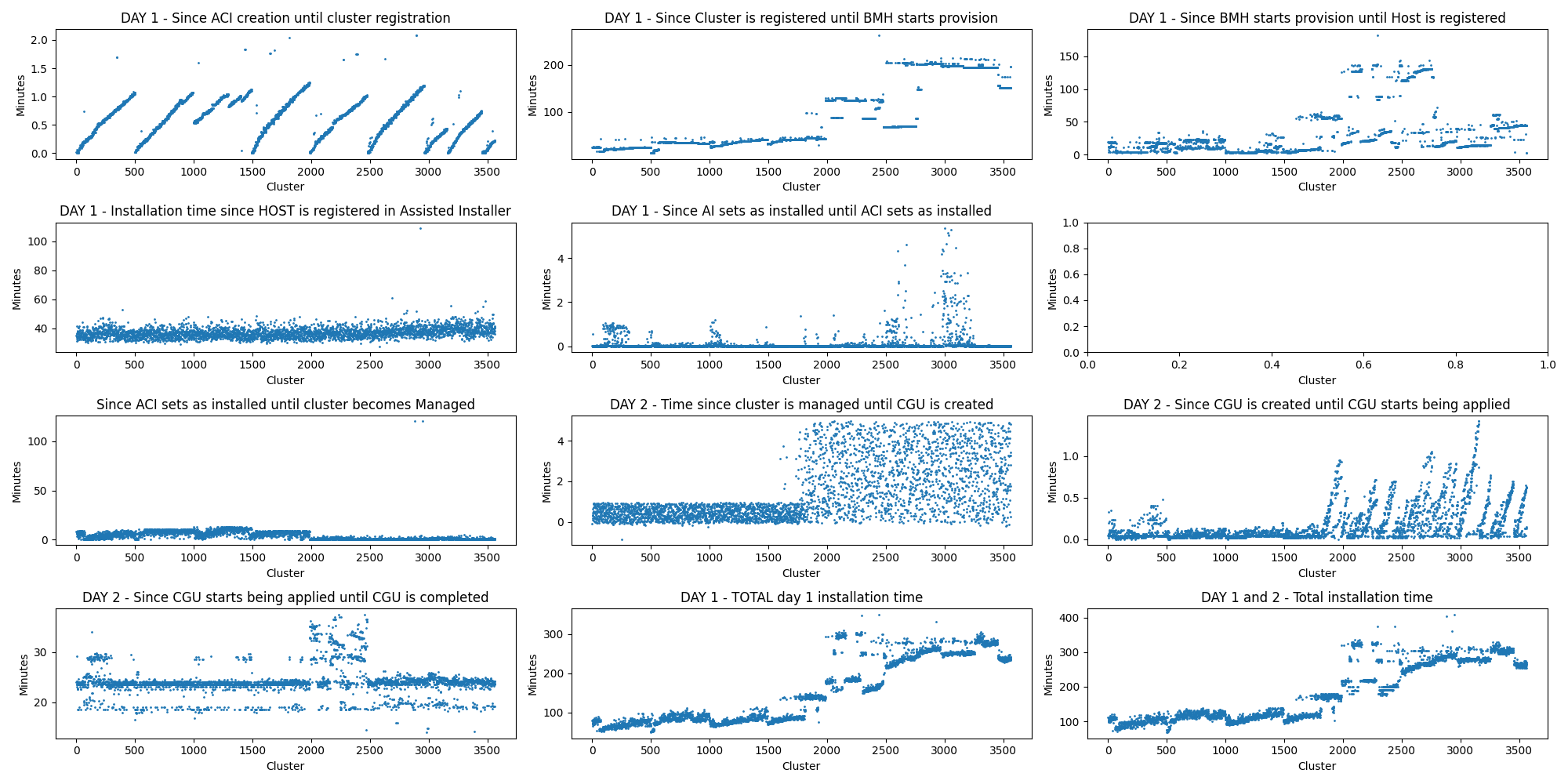

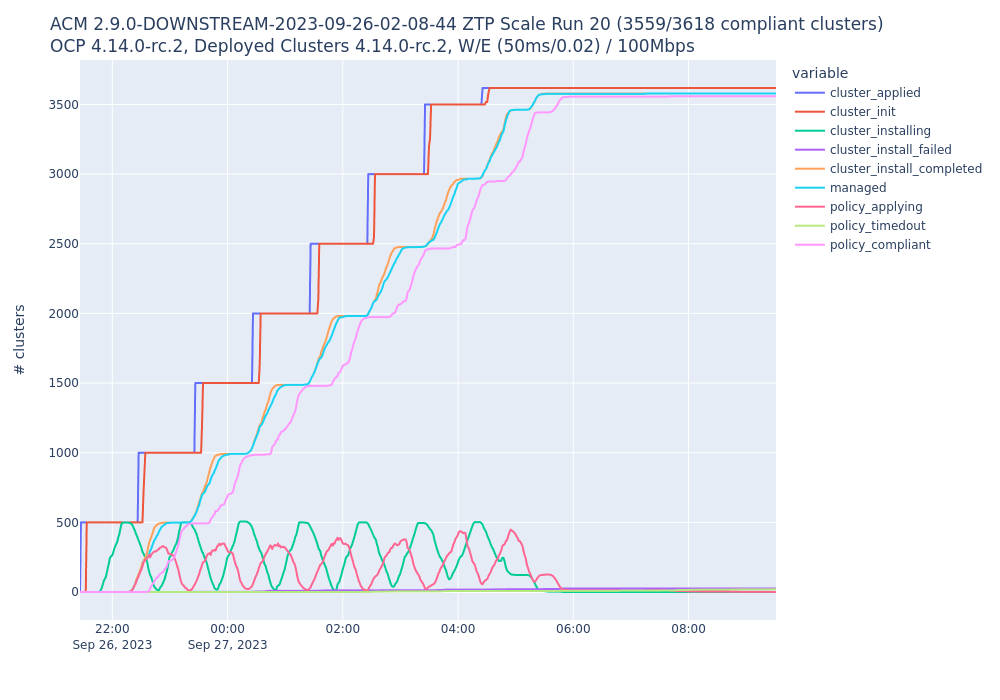

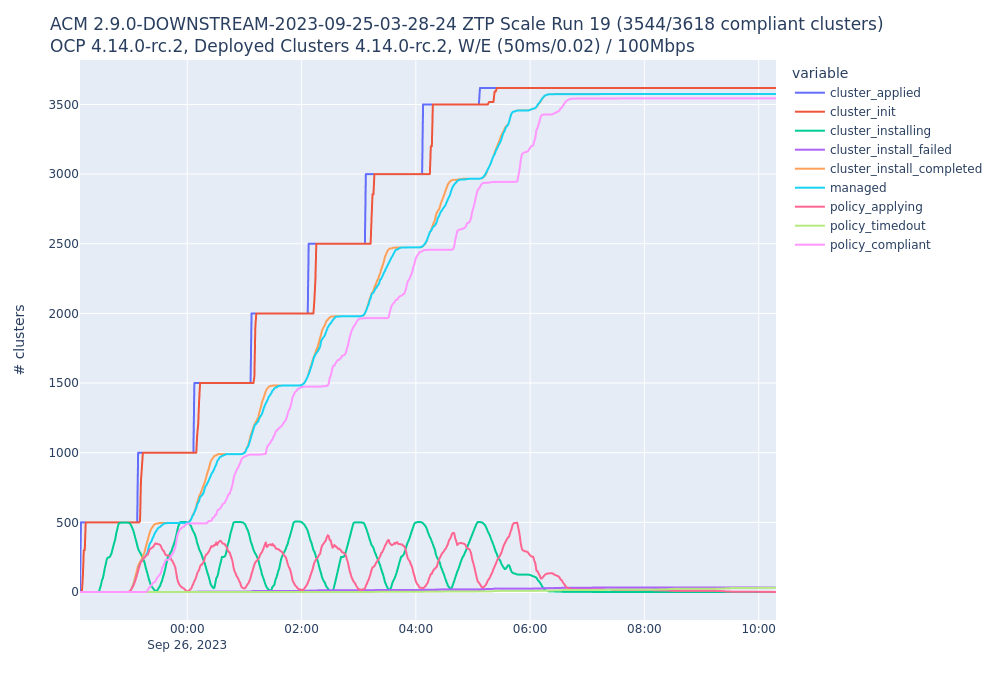

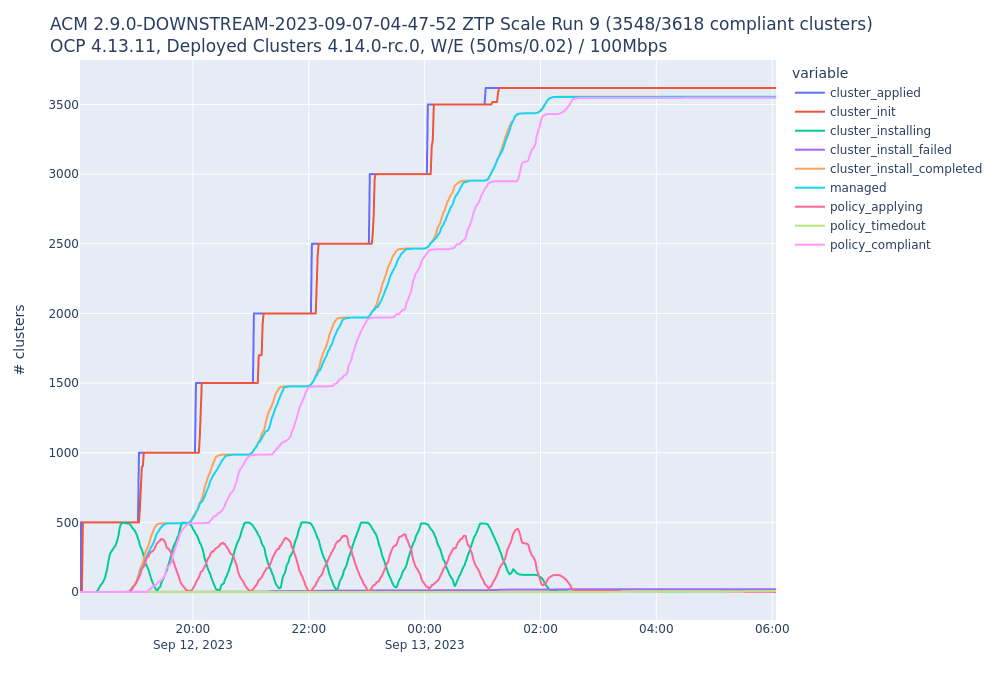

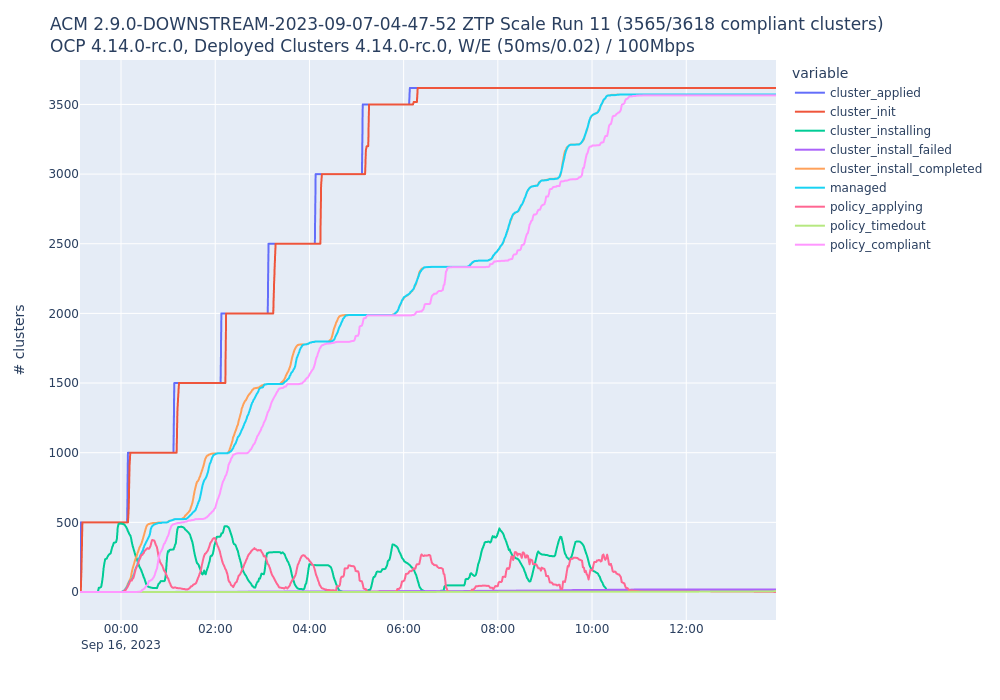

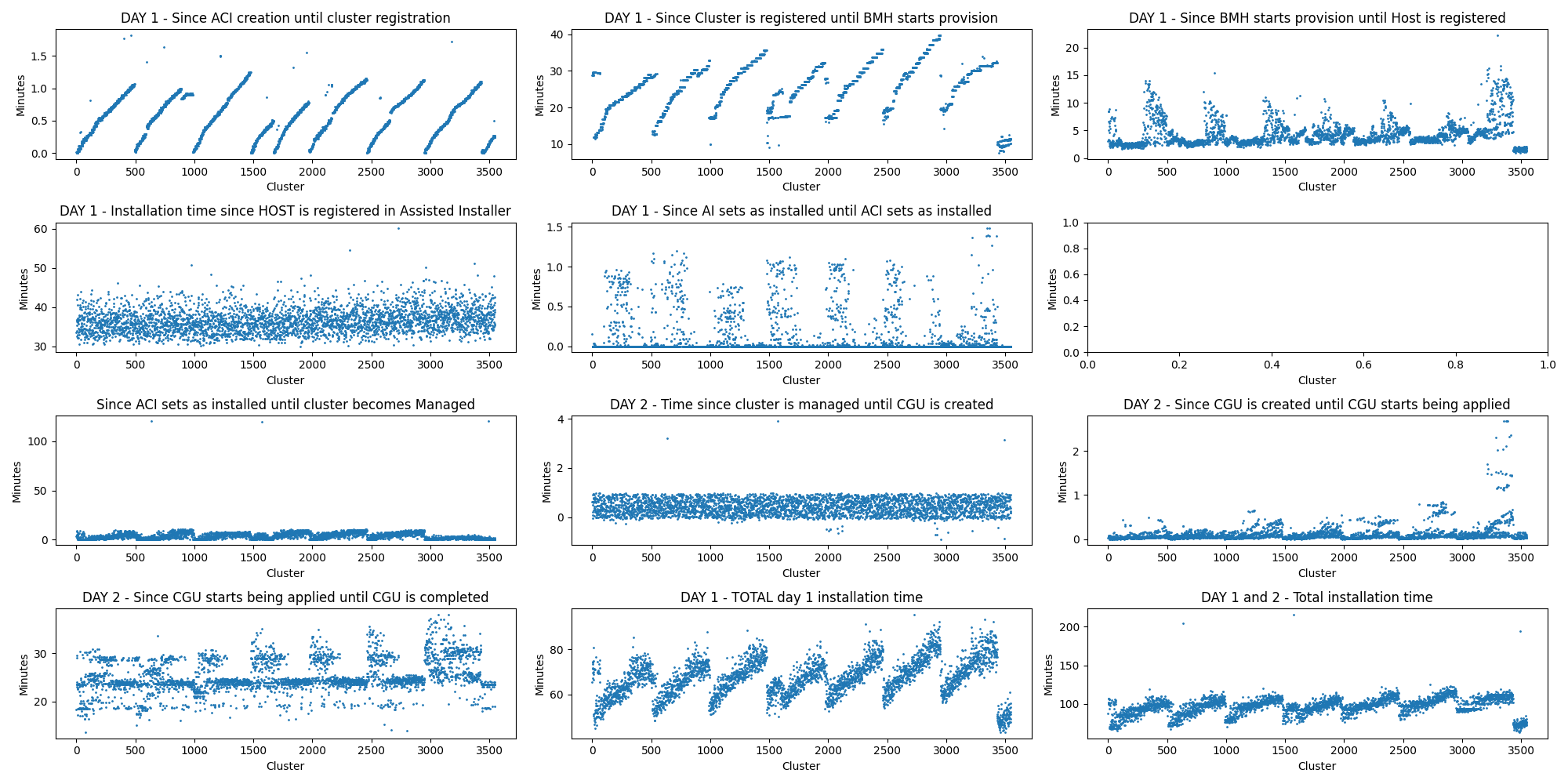

Attached are graphs from both a 4.14 and 4.13 run for comparison.  It isn't clear what is causing the slow down, however some analysis performed by scripts show a large growth in timing for the time required between when a cluster is register and when the bmh starts provisioning.

Since the only difference is the hub ocp version, it must be a included component in OCP which is driving this slow down.
