Uploaded image for project: 'Network Observability'
  1. Network Observability
  2. NETOBSERV-1992

Partial flows are seen on console

    • Quality / Stability / Reliability
    • False
    • Hide

      None

      Show
      None
    • None
    • Moderate
    • None
    • None
    • NetObserv - Sprint 265, NetObserv - Sprint 266
    • None
    • None
    • None

      Description of problem:

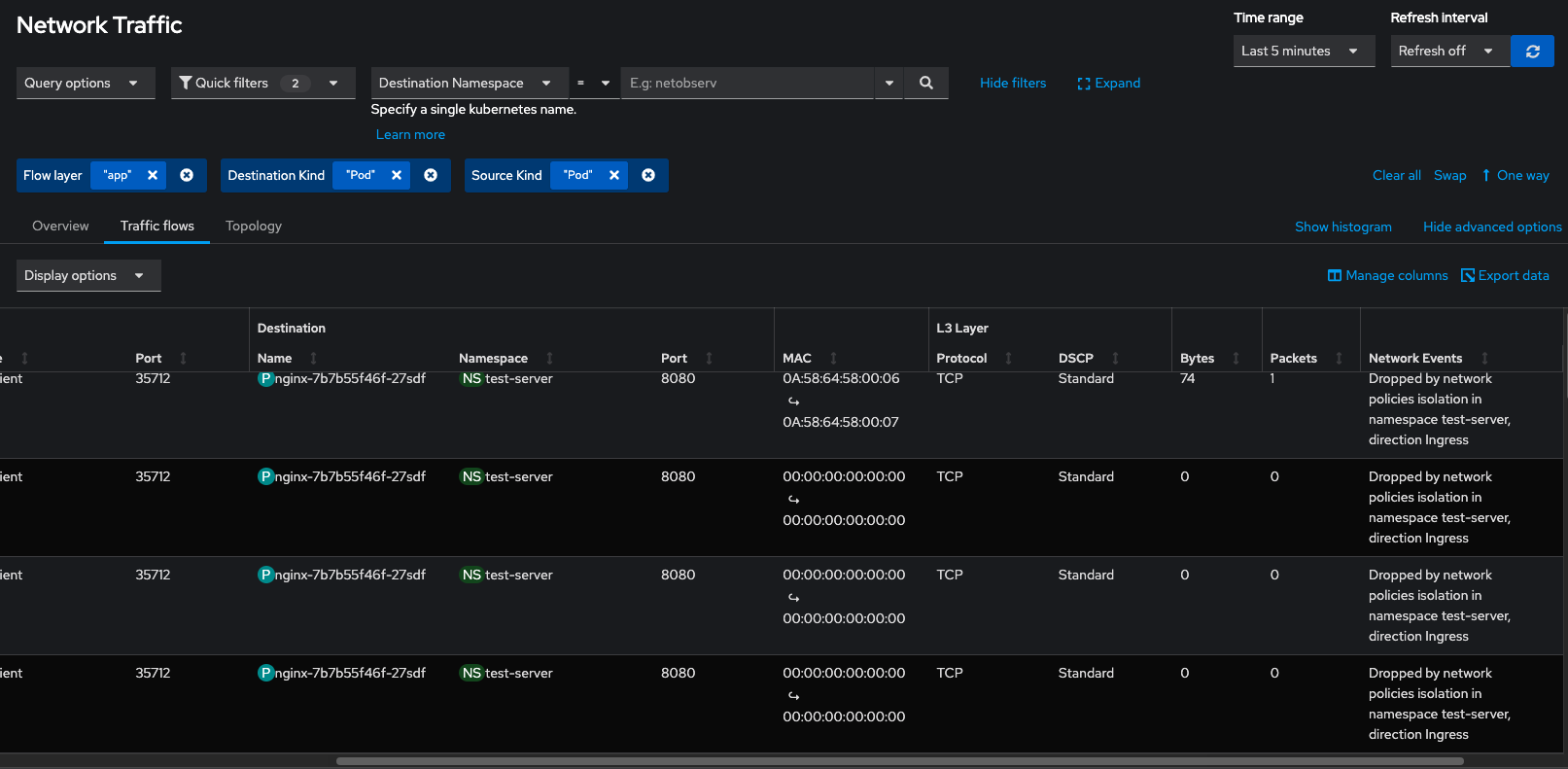

      Some flows with MAC address as 0s are seen on console with Byte and Packets == 0. This are considered as Partial flows, even though they're not as many, they can still occur.


      Steps to Reproduce:

      1. Set up client and server pods.
      2. Set up Ingress policy to deny all traffic for server pod NS.
      3. On Network Traffic page, see flows between client and server pods.

      Actual results:

      { "AgentIP": "10.0.51.102", "Bytes": 74, "DnsErrno": 0, "Dscp": 0, "DstAddr": "10.129.2.20", "DstK8S_HostIP": "10.0.51.102", "DstK8S_HostName": "ip-10-0-51-102.us-east-2.compute.internal", "DstK8S_Name": "nginx-7b7b55f46f-shfv4", "DstK8S_Namespace": "test-server", "DstK8S_NetworkName": "primary", "DstK8S_OwnerName": "nginx", "DstK8S_OwnerType": "Deployment", "DstK8S_Type": "Pod", "DstMac": "0A:58:64:58:00:07", "DstPort": 8080, "DstSubnetLabel": "Pods", "Etype": 2048, "Flags": 2, "FlowDirection": "0", "IfDirections": [ 1, 0 ], "Interfaces": [ "genev_sys_6081", "genev_sys_6081" ], "K8S_FlowLayer": "app", "Packets": 1, "Proto": 6, "SrcAddr": "10.131.0.10", "SrcK8S_HostIP": "10.0.15.192", "SrcK8S_HostName": "ip-10-0-15-192.us-east-2.compute.internal", "SrcK8S_Name": "client", "SrcK8S_Namespace": "test-client", "SrcK8S_NetworkName": "primary", "SrcK8S_OwnerName": "client", "SrcK8S_OwnerType": "Pod", "SrcK8S_Type": "Pod", "SrcMac": "0A:58:64:58:00:05", "SrcPort": 39708, "SrcSubnetLabel": "Pods", "TimeFlowEndMs": 1732211289311, "TimeFlowStartMs": 1732211289311, "TimeReceived": 1732211292, "app": "netobserv-flowcollector" }

      Expected results:



      See comment

        1. image-2025-01-09-11-09-29-063.png
          161 kB
          Mehul Modi

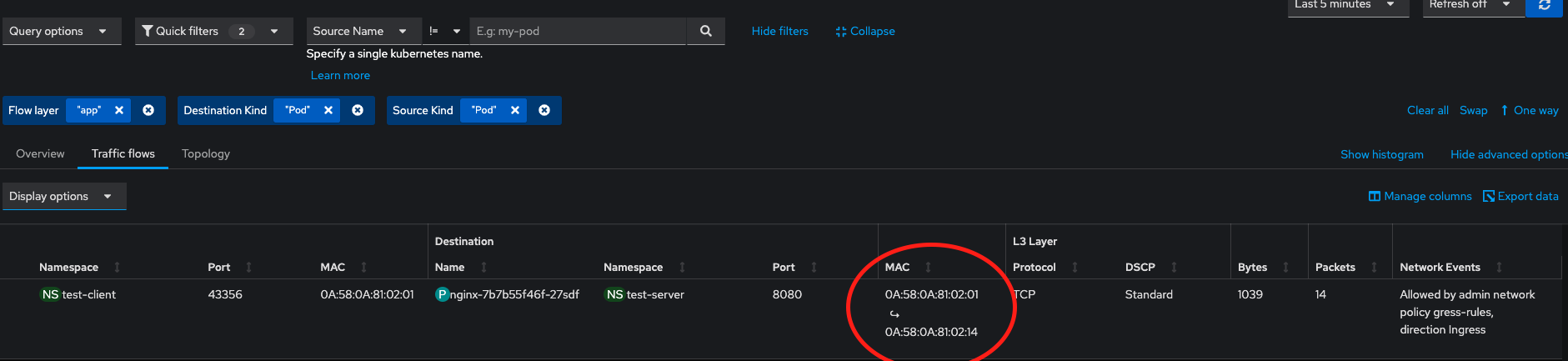

        2. image-2025-01-09-11-50-29-449.png
          97 kB
          Mehul Modi

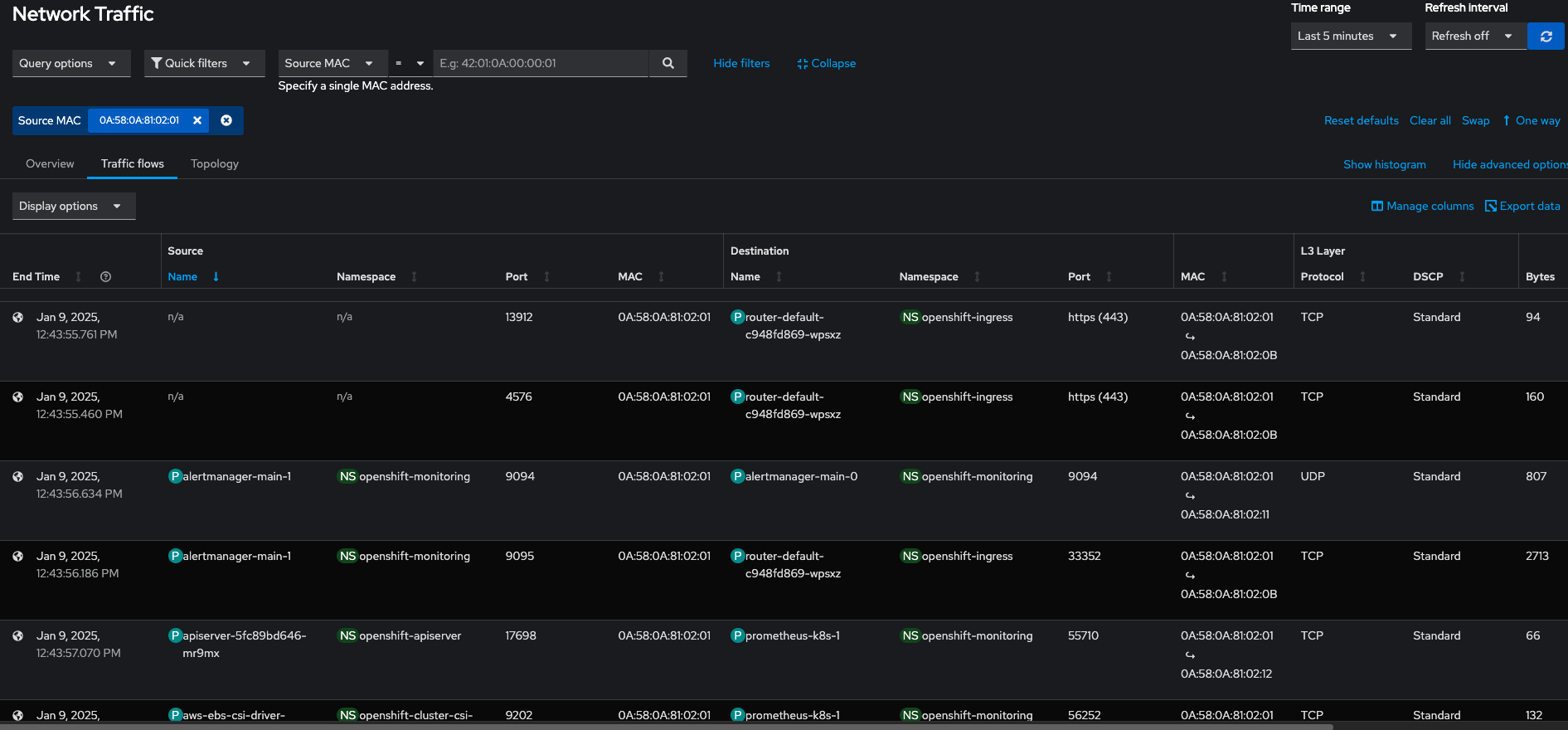

        3. image-2025-01-09-12-48-12-943.png
          207 kB
          Mehul Modi

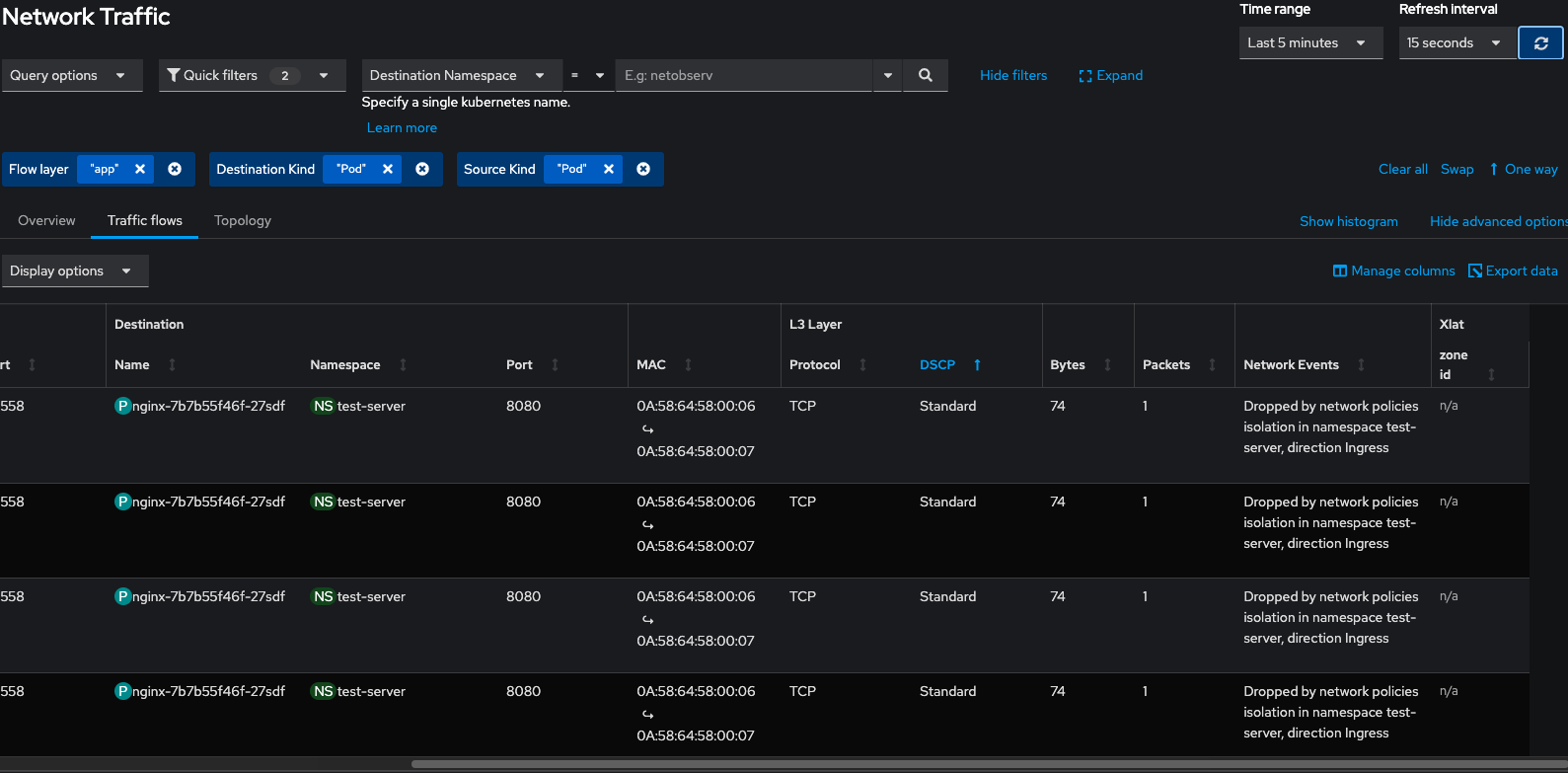

        4. image-2025-01-09-16-50-47-558.png
          161 kB
          Mehul Modi

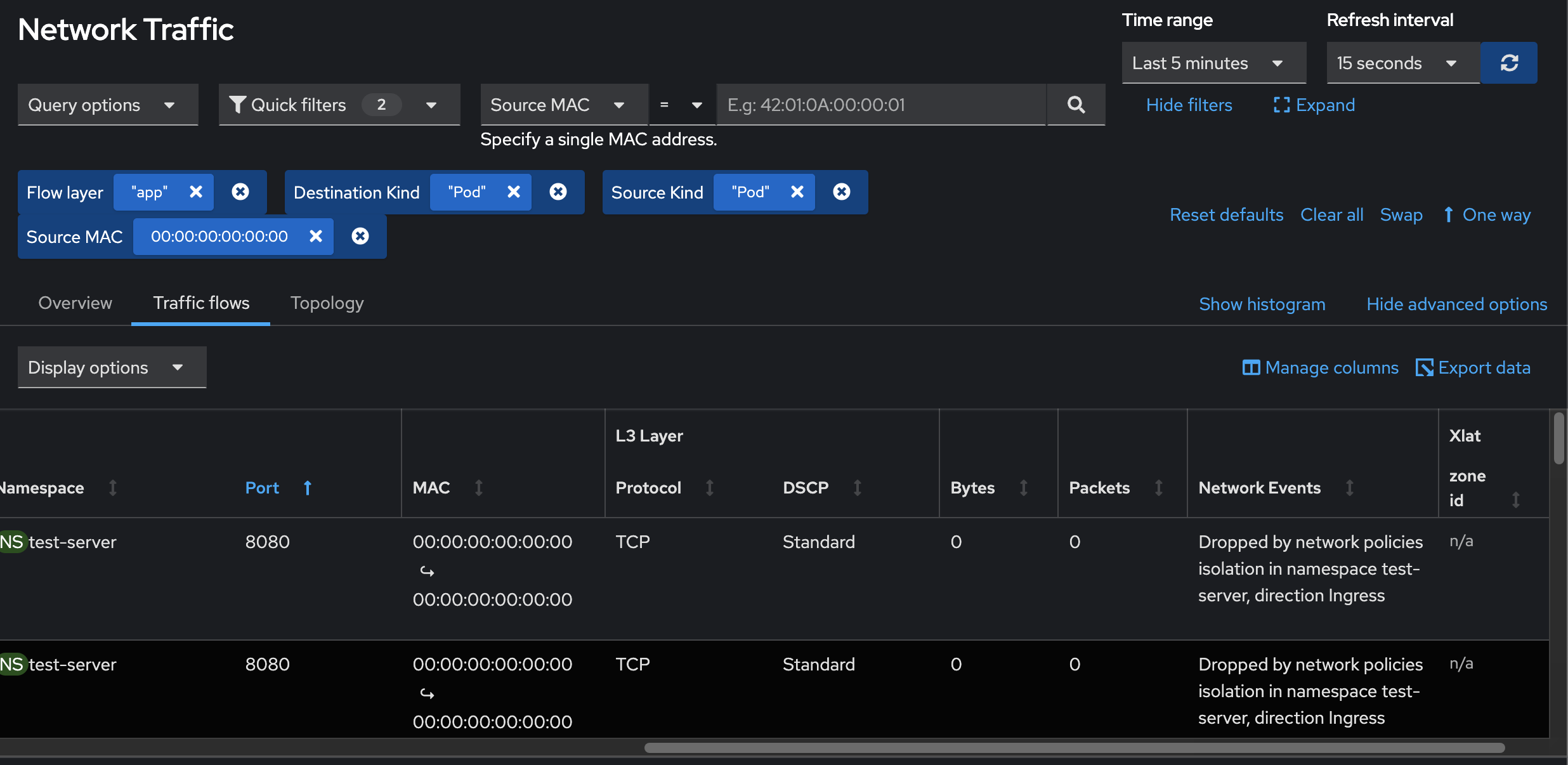

        5. image-2025-01-09-17-10-29-038.png
          273 kB
          Mehul Modi
