Migrating OVA VM is failing with MAC address conflict error

XMLWordPrintable

    • Icon: Bug Bug
    • Resolution: Done
    • Icon: Normal Normal
    • 2.9.3
    • 2.8.2
    • Controller
    • MTV Sprint 1
    • Moderate
    • +

      Description of problem:

      By default, OVA downloaded from VMware don't have MAC address in the OVF file. So the provider will see an empty value.

      curl -k -X GET -H "Authorization: Bearer $token" https://127.0.0.1:8443/providers/ova/c7c779ce-4834-4708-a2df-c80883b2167c/vms/d148465f8ae3b7b3cf6ebec41f09d6d95a2c' 2>/dev/null |jq '.nics'
      [
        {
          "Name": "Network adapter 1",
          "MAC": "",                            <===
          "Network": "PNQ2-25G-PUBLIC-PG",
          "Config": null
        }
      ]

      Migrating this virtual machine to OpenShift Virtualization is failing with MAC conflict error even though the source VM definition don't have any MAC:

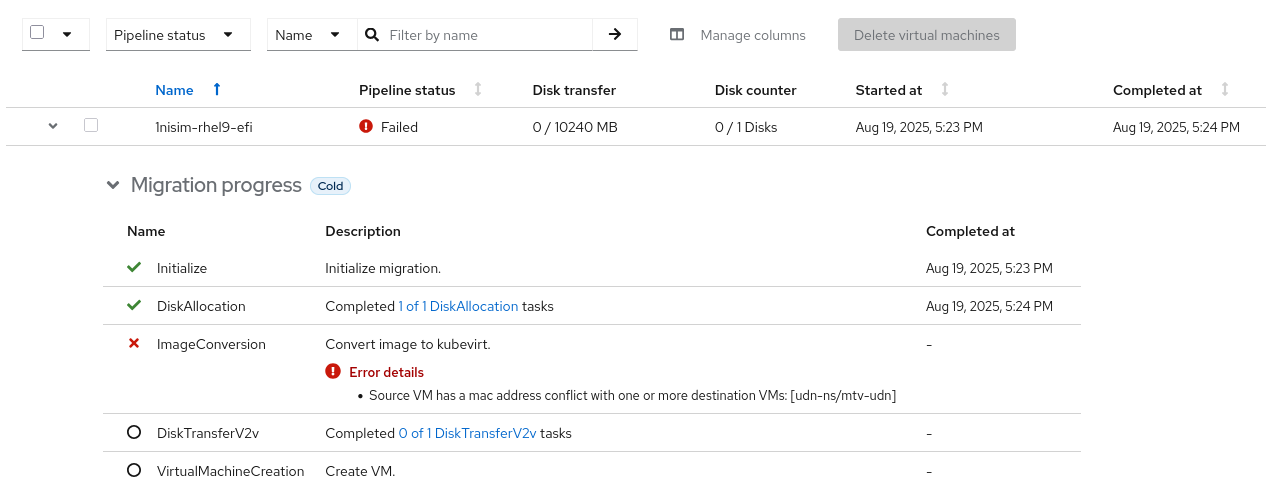

      Source VM has a mac address conflict with one or more destination VMs: [cvs-udn-poc1/rhel9-jade-falcon-53]

      The problem is it's comparing the empty value with the source VMs MAC address list. It is not considering empty mac case while checking macConflicts.

      The conflict is reported on a VM which is having UDN layer 2 primary network because the VM definition will not have MAC, so it matches this VM since we are comparing empty MAC:

      # oc get vm rhel9-jade-falcon-53 -n cvs-udn-poc1 -o yaml |yq '.spec.template.spec.domain.devices.interfaces'
      - binding:
          name: l2bridge
        model: virtio
        name: default

      # curl -k -X GET -H "Authorization: Bearer $token" https://127.0.0.1:8443/providers/openshift/a104967b-f19c-4329-adb2-fcd2cbdc0a03/vms/1e587459-fbfc-4515-b8ff-5d3d993bdc7a' 2>/dev/null|jq '.object.spec.template.spec.domain.devices.interfaces'
      [
        {
          "name": "default",
          "model": "virtio",
          "binding": {
            "name": "l2bridge"
          }
        }
      ]

      Version-Release number of selected component (if applicable):

      OpenShift Virtualization   4.18.2
      Migration Toolkit for Virtualization Operator   2.8.2

      How reproducible:

      Always


      Steps to Reproduce:

      1. Download an OVA file from VMware using option "export as template"
      2. In an OpenShift cluster, create a VM and attach UDN Layer 2 primary network to this VM.
      3. Migrate the OVA VM to this cluster. Migration will fail with error "Source VM has a mac address conflict with one or more destination" with conflict on above VM.

      Actual results:

      Migrating virtual machines from OVA provider fails with MAC conflict

      Expected results:

      The source VM OVF doesn't have any MAC addresses, so there is no scope for MAC conflicts

      Additional info:



              rh-ee-ehazan Elad Hazan
              rhn-support-nashok Nijin Ashok
              Chenli Hu Chenli Hu
