Update Dashbuilder Editor Schema with latest fields

XMLWordPrintable

    • Icon: Task Task
    • Resolution: Done
    • Icon: Major Major
    • None
    • None
    • Authoring Tooling
    • None
    • 2023 Week 27-29 (from Jul 3)

      Update the Schema used by Dashbuilder Editor for auto complete and validation:

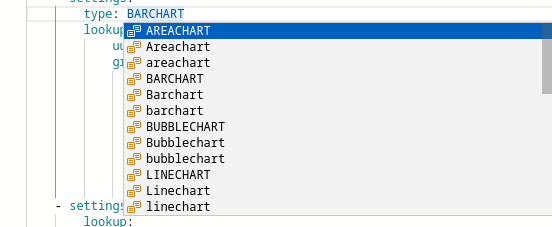

      • Remove lower and capitalized cases from enums, keep only upper case alternatives:



      • Add the new/missing fields in the schema:
        • dataset: Global new dataset declaration. Should support all dataset fields.
        • allowUrlProperties: when true then properties can be replaced using URL query parameters. It is a global parameter.
        • settings <-> displayer: settings can also be displayer now
        • Datasets missing fields: accumulate (boolean), maxCacheRows (number), headers (a map), join (an array) *  and *query (a map)
        • New functions for grouping:
          • MEDIAN, JOIN, JOIN_COMMA, JOIN_HYPHEN
        • Missing group function: COUNT
      • Remove enabled  from filter as a mandatory field
      • New string components:
        • screen: {pagename}   - to embed a new page. It is a top level component, such as html
        • panel: {pagename}   - to embed a new page with a titled panel. It is a top level component, such as html
        • markdown: {content}   - to create markdown content. It is a top level component, such as html
      • new displayer type: TIMESERIES
      • The type for column in dataset.columns is not required anymore. By default all columns are of type LABEL.
