Management Console will not work if there are multiple cache-containers and or endpoints

XMLWordPrintable

    • ER3
    • Hide

      Used a standard clustered.xml (7.1.1)
      Step 1 - add container:
      <cache-container name="clustered2" default-cache="mycache" statistics="true">
      <transport lock-timeout="60000"/>
      <global-state/>
      <distributed-cache name="mycache"/>
      </cache-container>
      Step 2 - add connector and binding:
      <hotrod-connector socket-binding="hotrod" cache-container="clustered">
      <topology-state-transfer lazy-retrieval="false" lock-timeout="1000" replication-timeout="5000"/>
      </hotrod-connector>
      <hotrod-connector name="hr2" socket-binding="hotrod2" cache-container="clustered2">
      <topology-state-transfer lazy-retrieval="false" lock-timeout="1000" replication-timeout="5000"/>
      </hotrod-connector>

      <socket-binding name="hotrod2" port="11333"/>

      Step 3 - add a name for the hotrod connector:
      <hotrod-connector name="hr1" socket-binding="hotrod" ....

      Show
      Used a standard clustered.xml (7.1.1) Step 1 - add container: <cache-container name="clustered2" default-cache="mycache" statistics="true"> <transport lock-timeout="60000"/> <global-state/> <distributed-cache name="mycache"/> </cache-container> Step 2 - add connector and binding: <hotrod-connector socket-binding="hotrod" cache-container="clustered"> <topology-state-transfer lazy-retrieval="false" lock-timeout="1000" replication-timeout="5000"/> </hotrod-connector> <hotrod-connector name="hr2" socket-binding="hotrod2" cache-container="clustered2"> <topology-state-transfer lazy-retrieval="false" lock-timeout="1000" replication-timeout="5000"/> </hotrod-connector> <socket-binding name="hotrod2" port="11333"/> Step 3 - add a name for the hotrod connector: <hotrod-connector name="hr1" socket-binding="hotrod" ....

      If a second cache contiainer is configured with the necesarry endpoint the management console shows

      1.) wrong information
      If the endpoint is not configured or the (1. default) enpoint does not use the name attribute
      -> both containers shows the same enpoint configuration which is wrong

      2.) blank page
      If both endpoints use a name attribute the console is not longer working

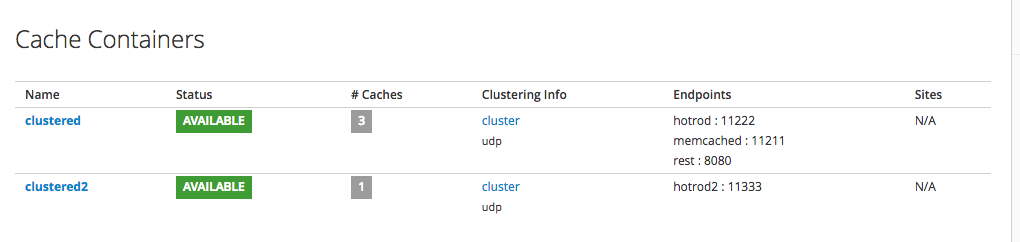

        1. Screen Shot 2018-02-02 at 11.27.02 AM.png
          Screen Shot 2018-02-02 at 11.27.02 AM.png
          36 kB
        2. Step1 - hotrod2 endpoint configured - hotrod1 enpoint does not have a name.png
          Step1 - hotrod2 endpoint configured - hotrod1 enpoint does not have a name.png
          20 kB
