Uploaded image for project: 'jBPM'
  1. jBPM
  2. JBPM-7521

Stunner - bendpoints of sequence flow leading outside of container are attached to process itself

XMLWordPrintable

    • Icon: Bug Bug
    • Resolution: Unresolved
    • Icon: Major Major
    • None
    • 7.9.0.Final
    • Designer
    • NEW
    • NEW
    • Hide
      1. Model process [Start->Task->End]
      2. Put Start event to Process level and remaining process inside of lane
      3. Add bendpoints to Sequence flow connecting Start node and Task
      4. Move lane

      Actual Result:
      Bendpoints will be attached to process not to lane
      Expected Result:
      Bendpoints will move along lane

      Show
      Model process [Start->Task->End] Put Start event to Process level and remaining process inside of lane Add bendpoints to Sequence flow connecting Start node and Task Move lane Actual Result : Bendpoints will be attached to process not to lane Expected Result : Bendpoints will move along lane

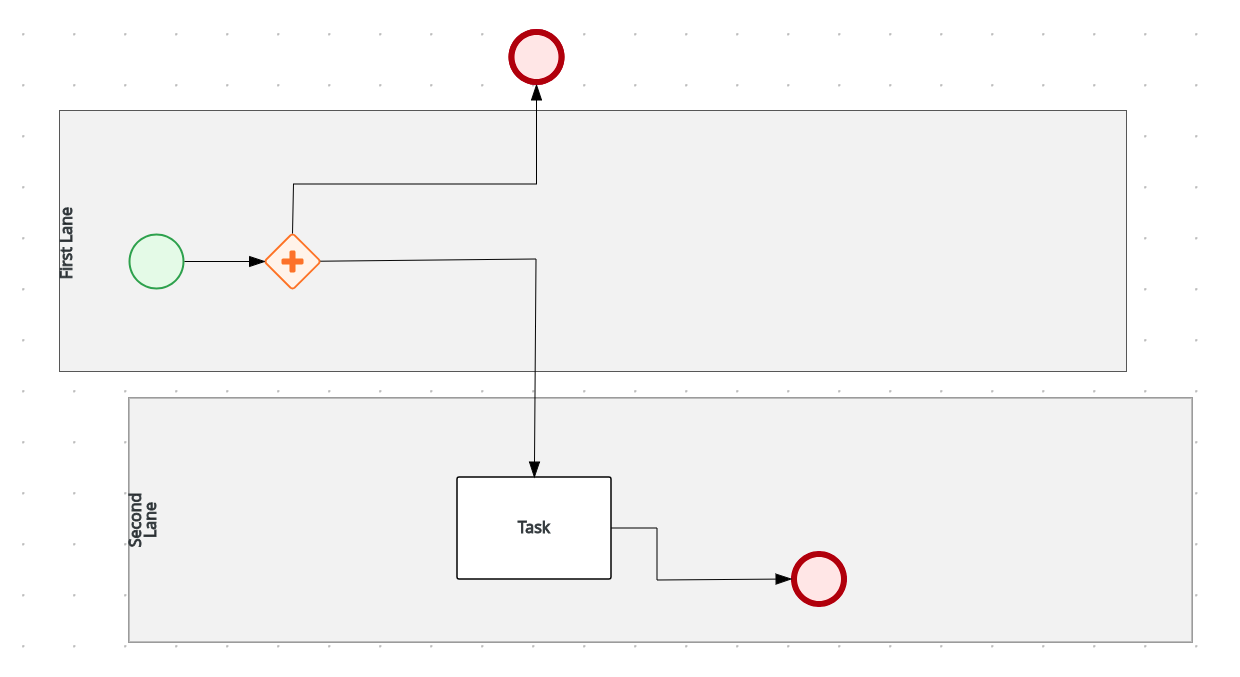

      When I moving around second lane (See ) all bendpoints are attached to it and move together with lane. When I move first lane all bendpoints are attached to Process itself and doesn't move with lane.
