Stunner - Diagram properties shown in case of invalid process

XMLWordPrintable

    • Icon: Bug Bug
    • Resolution: Obsolete
    • Icon: Optional Optional
    • None
    • 7.8.0.Final
    • Designer
    • NEW
    • NEW
    • Hide
      1. Import the attached process in workbench
      2. It will be opened with xml editor because contains </bpsim:BPSimDat> instead </bpsim:BPSimData>
      3. Fix the issue and save and reopen process
      4. Now it is opened by process designer
      5. Expand diagram properties

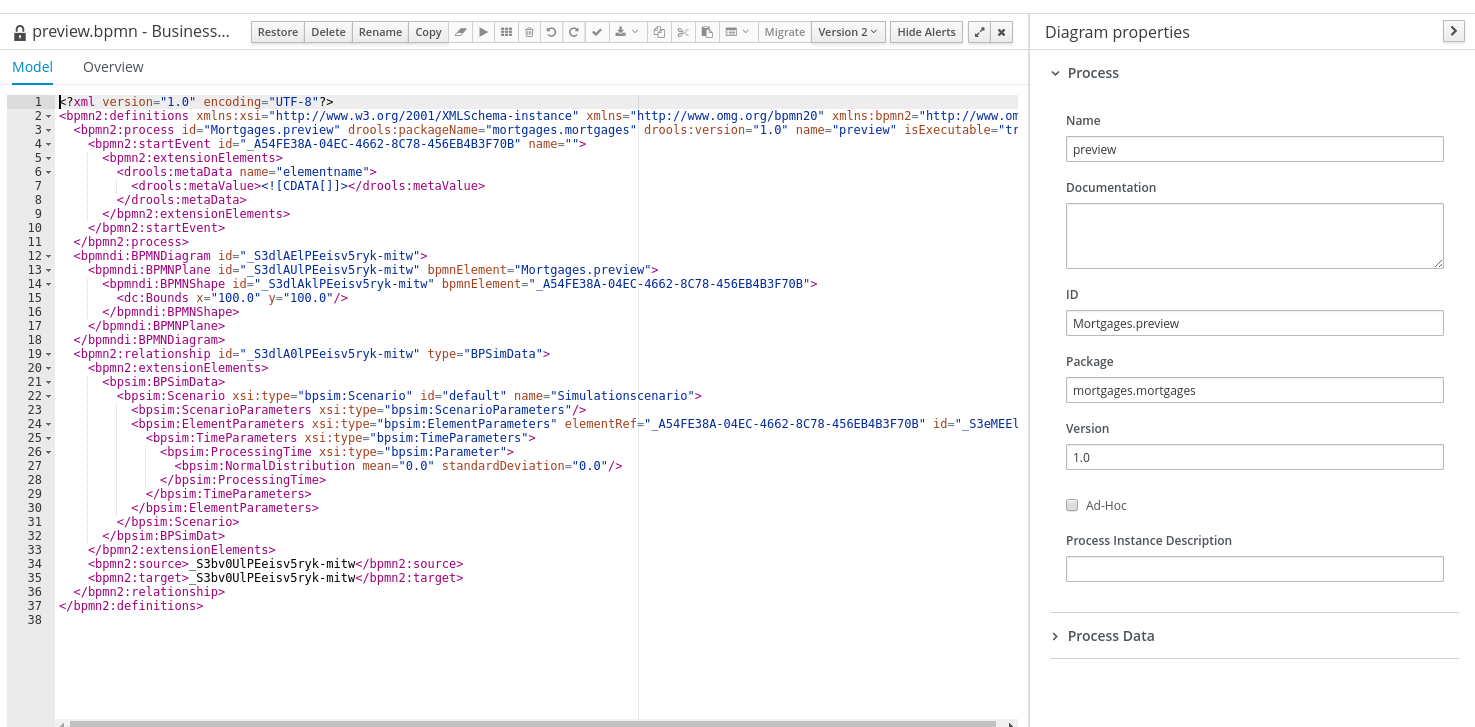

      6. Select version 1 in version history, you will be in situation like

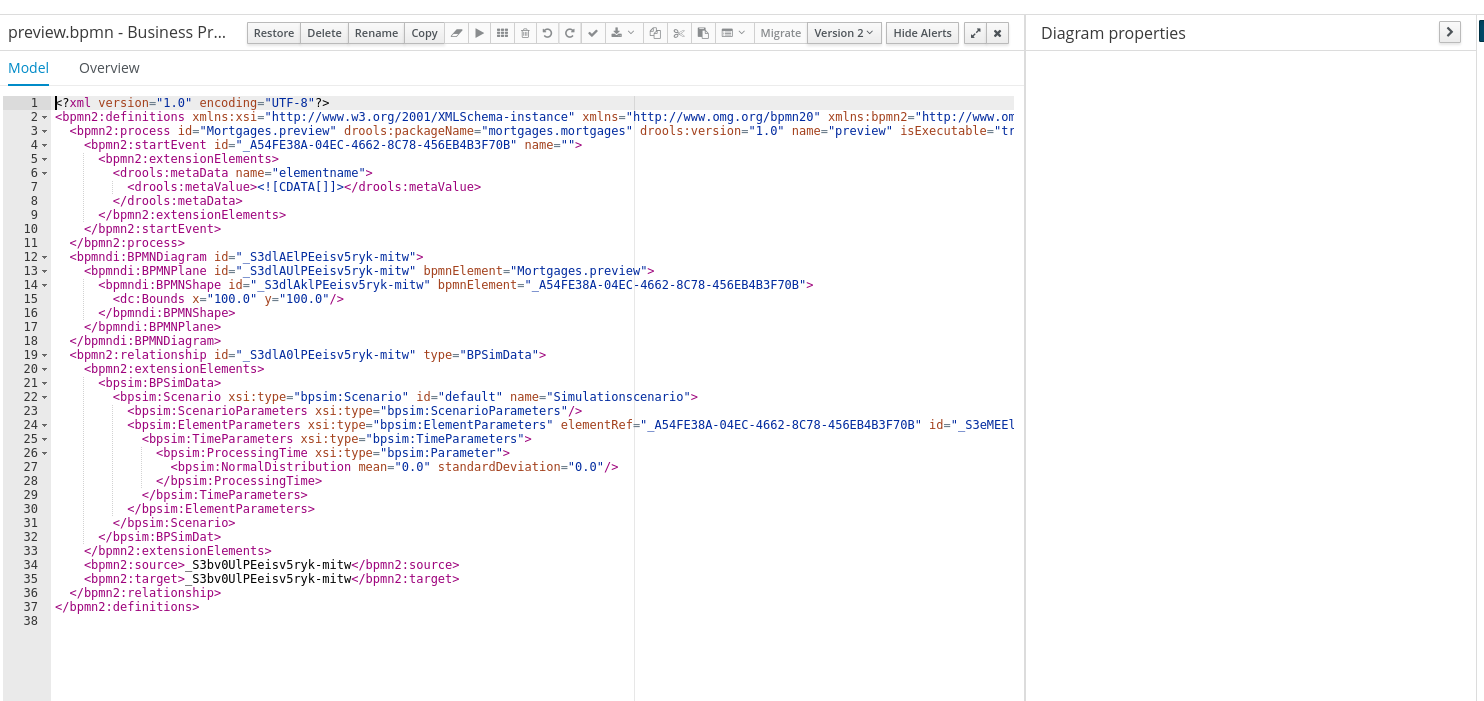

      7. Expected is
      Show
      Import the attached process in workbench It will be opened with xml editor because contains </bpsim:BPSimDat> instead </bpsim:BPSimData> Fix the issue and save and reopen process Now it is opened by process designer Expand diagram properties Select version 1 in version history, you will be in situation like Expected is

      There exists scenario, when diagram properties are shown for the invalid process. The diagram properties shouldn't be shown for invalid process.
