OCP 4.19 adds the ability to run secure, nested containers in a Pod.

Reference - https://github.com/cgruver/ocp-4-18-nested-container-tech-preview

The relevant feature gates are -

• UserNamespacesSupport
• UserNamespacesPodSecurityStandards
• ProcMountType

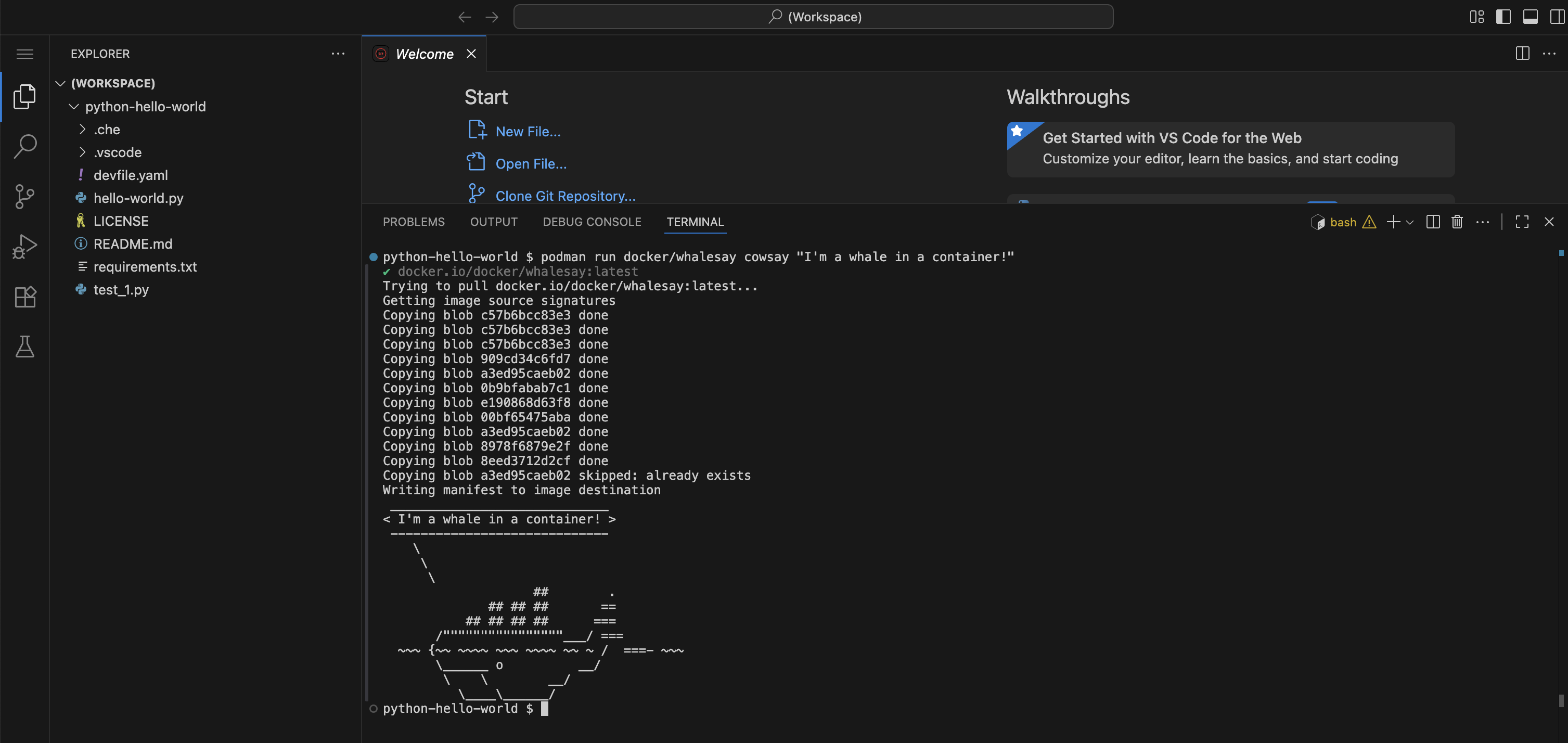

By enabling the new capabilities in OpenShift Dev Spaces we will provide users with a full podman and podman-compose capability inside of a workspace.

Changes needed to Dev Spaces -

1. Ability to detect OCP version 4.19+
2. Feature toggle to enable nested containers for workspaces on OCP 4.19+
3. SCC that implements the constraints necessary for user namespaces
4. Changes to UDI images to use a different pattern for subuid and subgid
5. Changes to DevWorkspace Operator to create workspace Deployments with the correct securityContext settings

Considerations for design -

• Processes in containers can now run with predictable uid/gid
• Need to block enabling on OCP < 4.19
• It is now possible to run containers as root without security implications

Example SCC -

apiVersion: security.openshift.io/v1
kind: SecurityContextConstraints
metadata:
  name: nested-podman-scc
priority: null
allowPrivilegeEscalation: true
allowedCapabilities:
- SETUID
- SETGID
fsGroup:
  type: MustRunAs
  ranges:
  - min: 1000
    max: 65534
runAsUser:
  type: MustRunAs
  uid: 1000
seLinuxContext:
  type: MustRunAs
  seLinuxOptions:
    type: container_engine_t
supplementalGroups:
  type: MustRunAs
  ranges:
  - min: 1000
    max: 65534
userNamespaceLevel: RequirePodLevel

Significant changes -

• `userNamespaceLevel: RequirePodLevel ` - Forces the Pod to use usernamespaces for uid/gid instead of host uid/gid
• `runAsUser:, fsGroup:, supplementalGroups:` - Allows the workspace containers to run as known uid/gid
• `seLinuxOptions:` - uses the `container_engine_t` selinux type which is compatible with usernamespaces.

Example Pod -

apiVersion: v1
kind: Pod
metadata:
  name: nested-podman
  namespace: podman-demo
  annotations:
    io.kubernetes.cri-o.Devices: "/dev/fuse,/dev/net/tun"
    openshift.io/scc: nested-podman-scc
spec:
  hostUsers: false
  containers:
  - name: nested-podman
    image: quay.io/cgruver0/che/workspace-base:latest
    securityContext:
      allowPrivilegeEscalation: true
      procMount: Unmasked
      capabilities:
        add:
        - "SETUID"
        - "SETGID"
