Creating OpenShift cluster in Azure should default to 1024GB root disk for control plane

XMLWordPrintable

    • 1
    • False
    • Hide

      None

      Show
      None
    • False
    • 1
    • Workload Mgmt Train 31 - 1, Workload Mgmt Train 31 - 2, Workload Mgmt Train 32 - 1, Workload Mgmt Train 32 - 2
    • Moderate
    • None

      Description of problem:

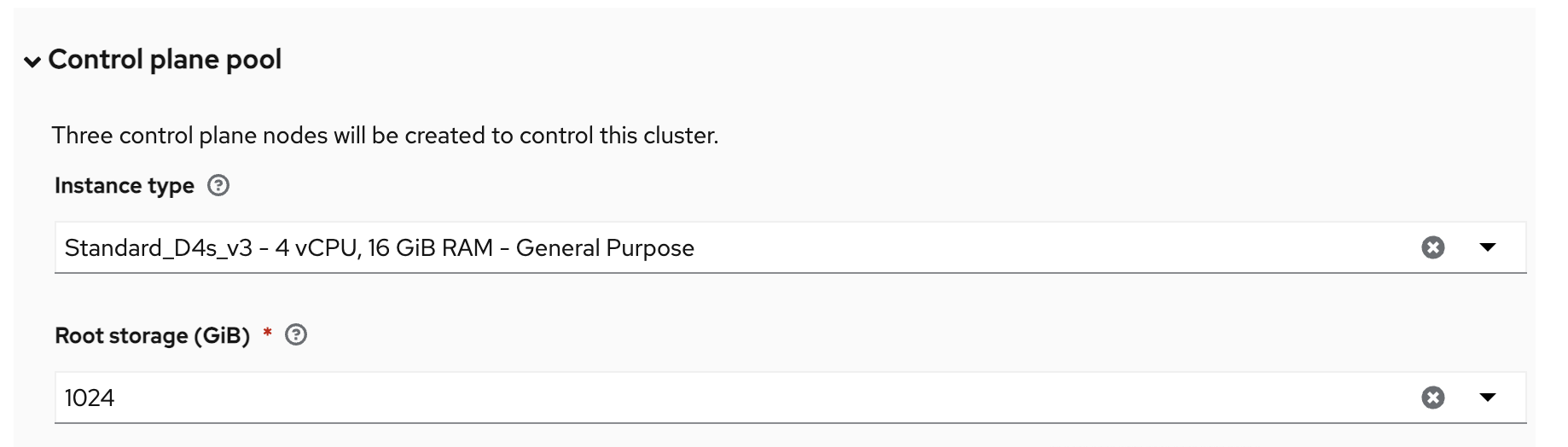

      The default in ACM for the root disk size is 128GB but after installing the cluster, RH Insights alerts that the size should be 1024GB per recommendations.

      Version-Release number of selected component (if applicable):

      OCP 4.17.12
      ACM 2.12.2

      How reproducible:

      Always

      Steps to Reproduce:

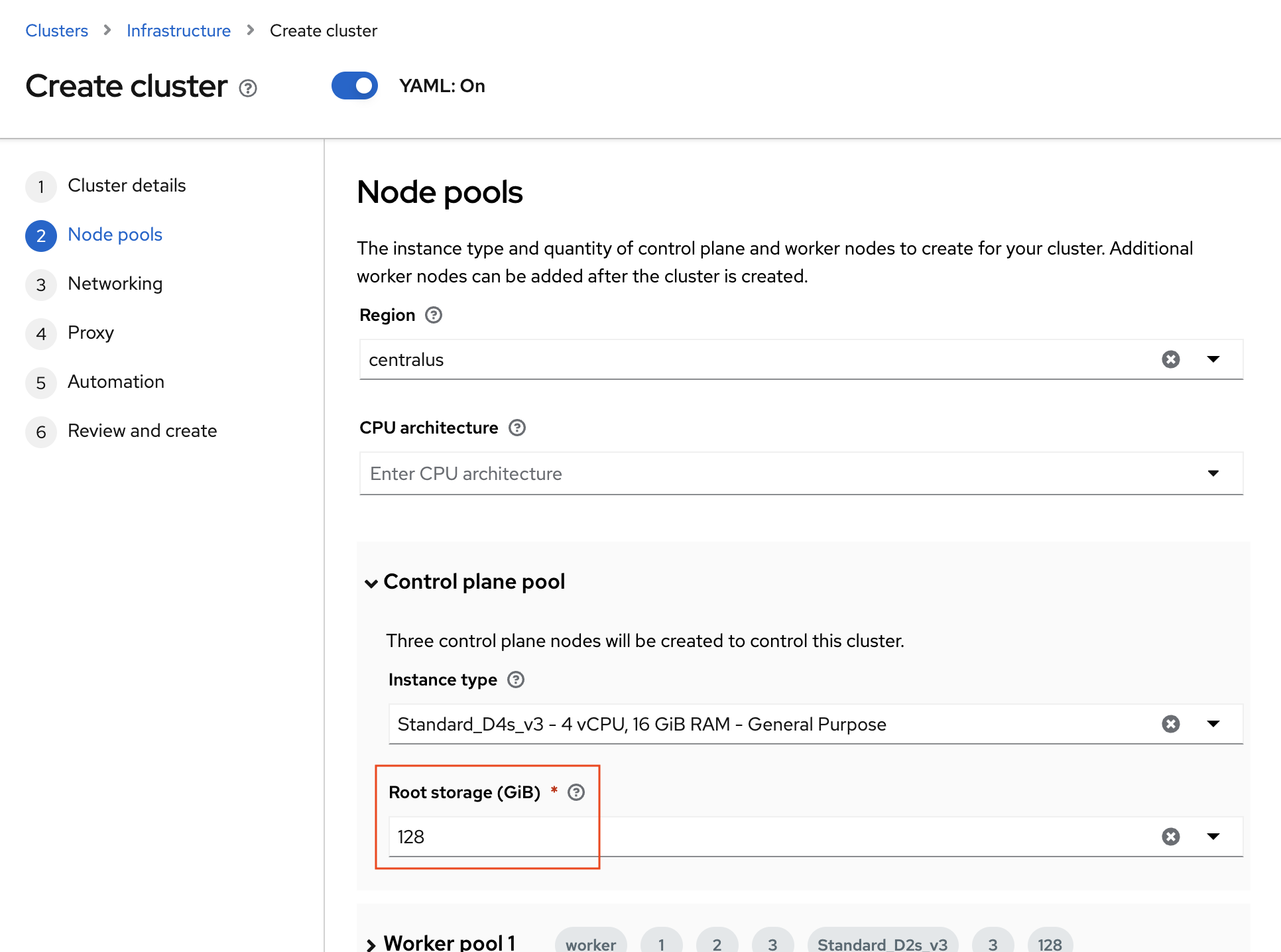

      1. Create a new Azure cluster in ACM web interface
      2. Use defaults that are given in the GUI
      3. Install cluster
      4. Wait for Insights to run (maybe requires ~24 hours?)

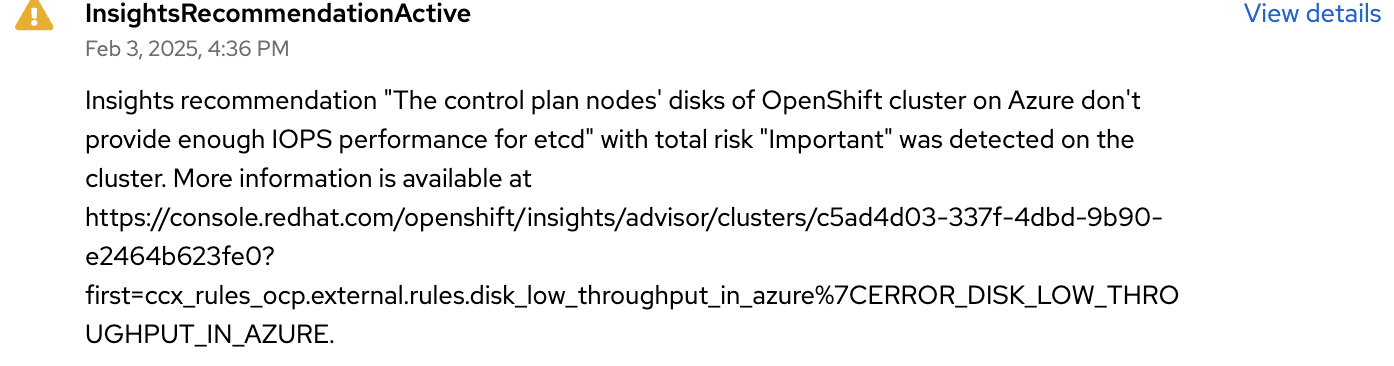

      5. Insights alert should fire on managed cluster

      Expected results:

      When using defaults, it is reasonable to expect that the cluster that is created is within the recommended parameters

      Additional info:

      Insights rule is called ccx_rules_ocp.external.rules.disk_low_throughput_in_azure
