Console plugin: new health tab

    • Icon: Story Story
    • Resolution: Done
    • Icon: Undefined Undefined
    • None
    • None
    • Console Plugin
    • None
    • None
    • None
    • NetObserv - Sprint 274, NetObserv - Sprint 275, NetObserv - Sprint 276, NetObserv - Sprint 277

      Console plugin should read the alerts definitions and firing status (or execute related promql) to display:

      • a global network health indicator, that is an aggregation of all alert statuses
      • per-alert status

      It fetches all alerts having the annotation "netobserv.io/health".



      The global indicator should work as follow:

      • it takes the highest severity of all firing alerts, with color codes (red=critical, yellow=warning etc.)
      • it shows a score of number of firing alerts / number of total alerts for each severity

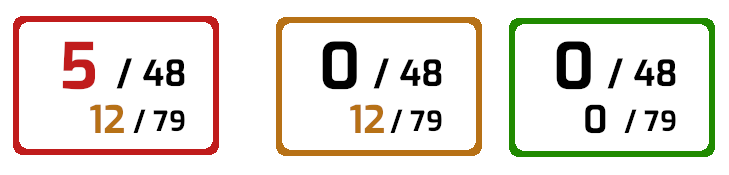

      Here's an example showing 3 different states (not final design - must be patternflied) :

      Below that, for each firing alert, the list of targets (labels) for which it is firing, and the metric value compared to threshold, in a table.

      Table headers are:

      • alert name
      • source (source-prefixed labels set)
      • destination (destination-prefixed labels set)
      • labels (other labels set)
      • severity
      • metric value
      • threshold
      • trend



      The trend indicates the evolution over time.

      For instance, this promql:

      100 * sum (rate(netobserv_namespace_drop_packets_total[1h])) / sum (rate(netobserv_namespace_ingress_packets_total[1h])) - 100 * sum(rate (netobserv_namespace_drop_packets_total[1h] offset 2h)) / sum(rate(netobserv_namespace_ingress_packets_total[1h] offset 2h))

      => value: 1.48

      shows %drops now compared to 2h ago (+1.48%)
